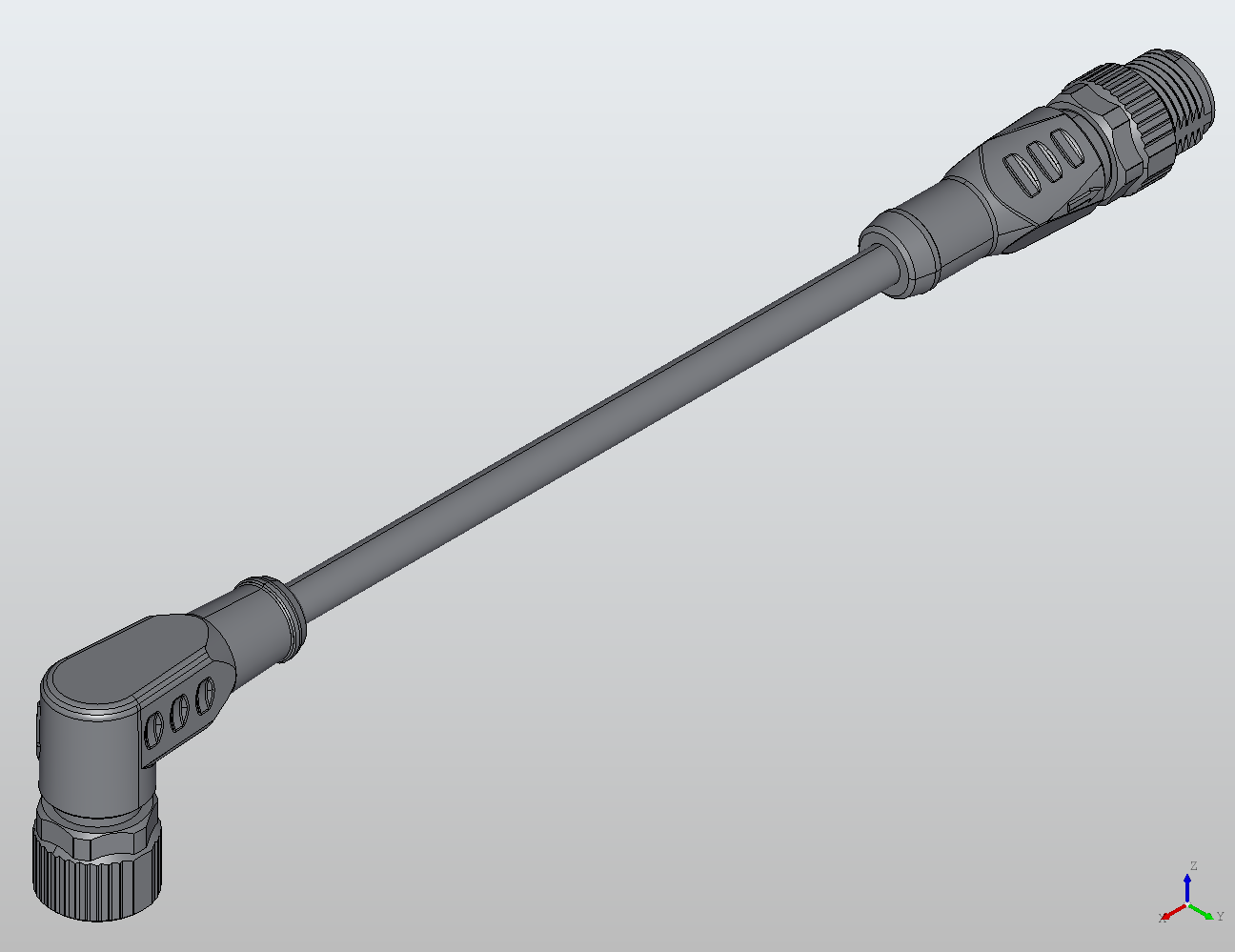

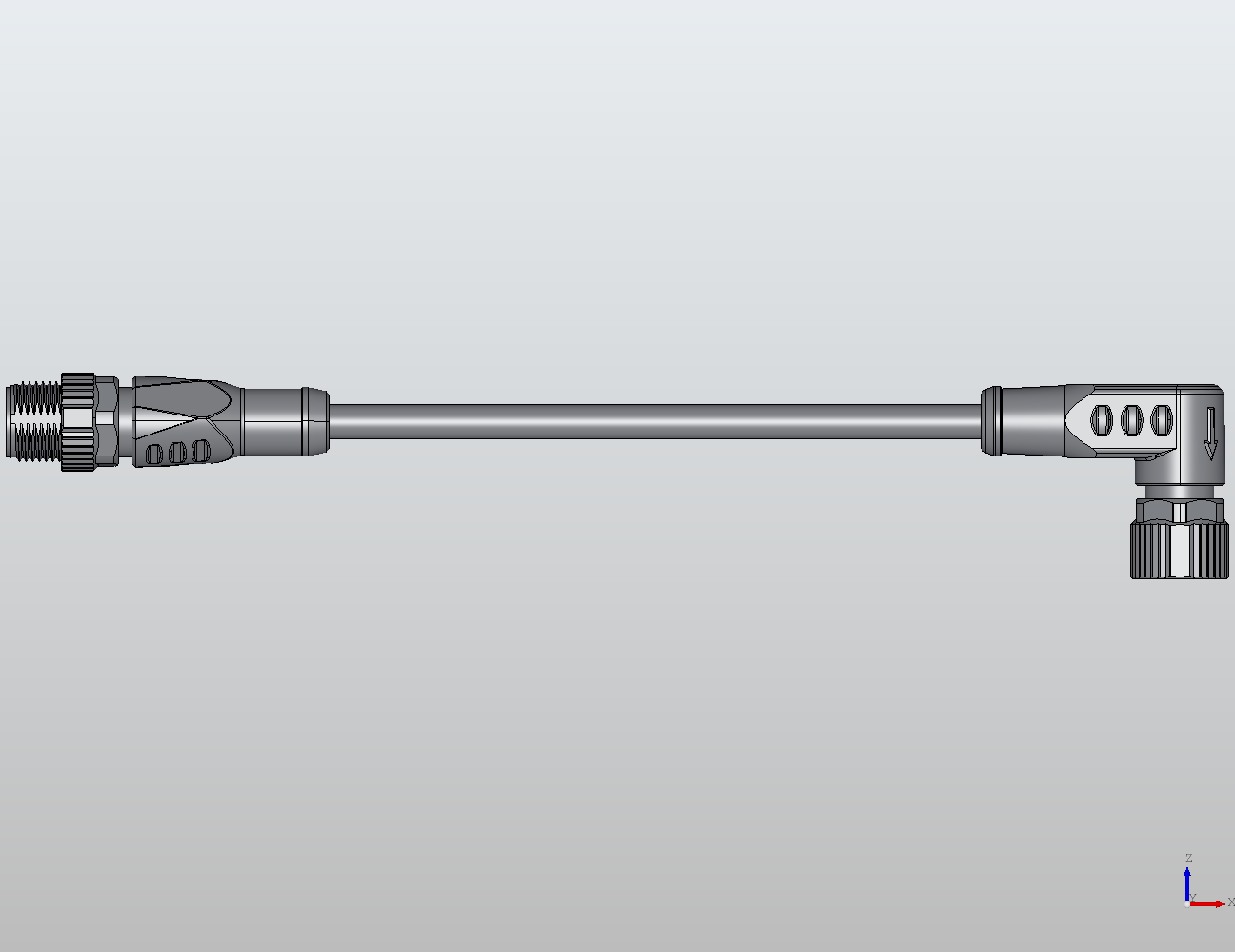

M12 Round Plug Connector M12-M12 Connection Cable (Shielded) Straight/90° Male/Female 944131 - PVC 30mm
944131-330-0030
Price
--Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded 4-pole male/female connection cable, available in straight or 90° orientations, supports flexible M12-to-M12 interconnection in compact automation layouts. Shielded construction improves EMI/RFI immunity, helping maintain stable signal transmission around drives, motors, and other noise sources.
Current 12 A
Standard IEC 61076-2-101
Shielding Yes
LED No
Lengths 30 - 200 mm
Specifications
| Specification | Value |
|---|---|
| Color | grey |
| Poles | 4 |
| Shielded | Yes |
| Coding | a |
| Jacket | pvc |
| C Track | no |
| Csa (mm2) | 4x0-34-mm² |
| Length (mm) | 30mm |
