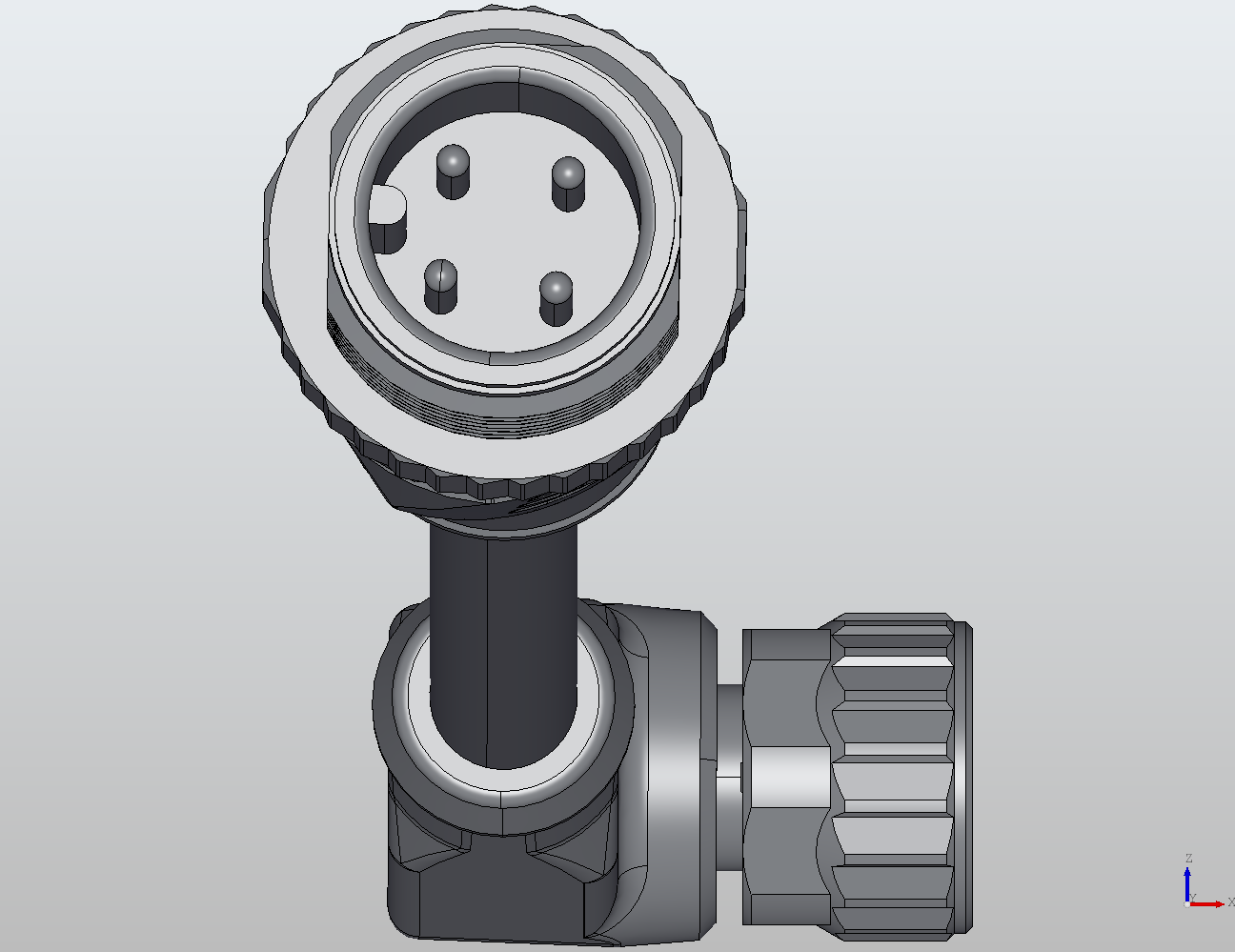

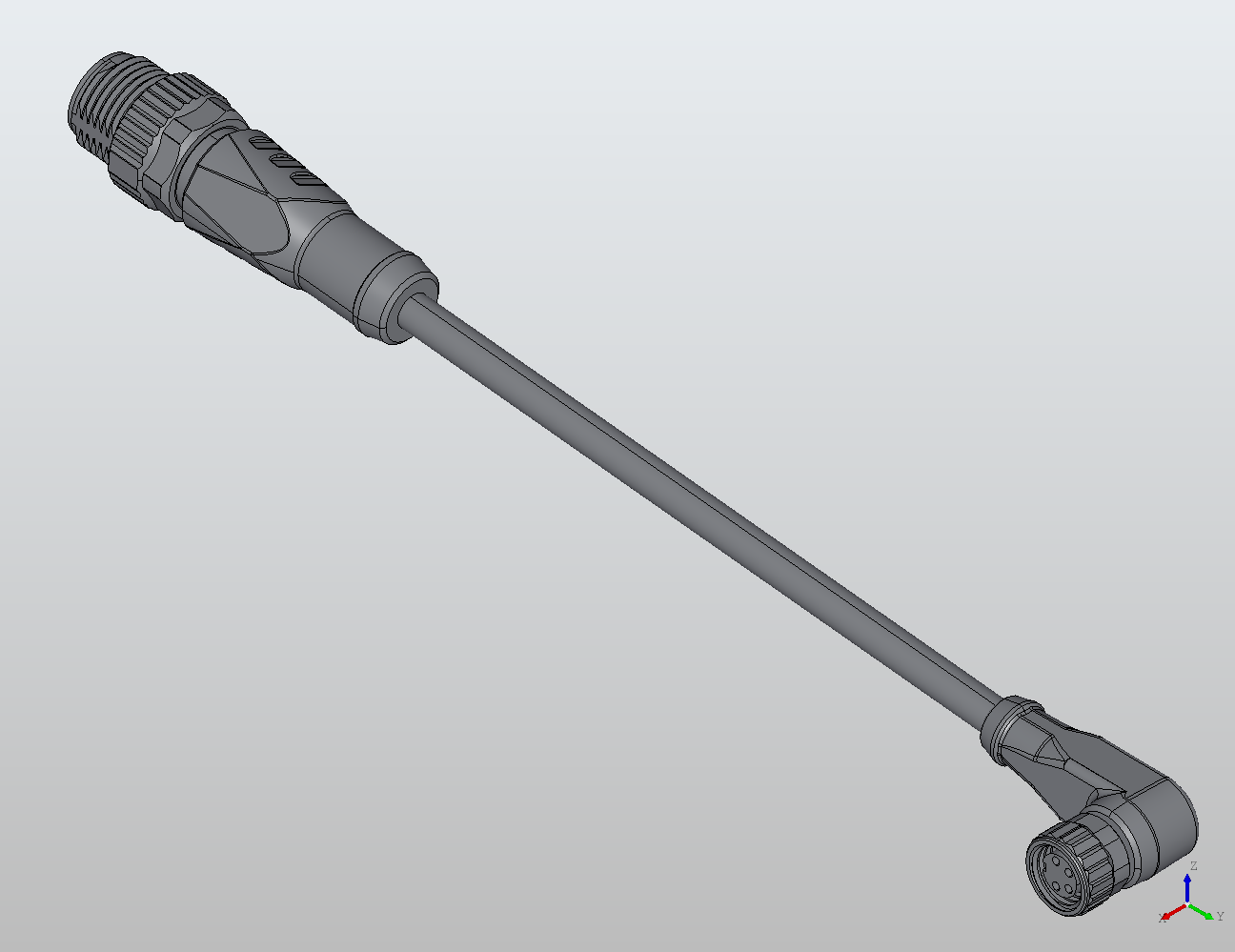

M12 Round Plug Connector M12-M8 Connection Cable Straight/90° Male/Female 940621 - Yellow TPEE-XLPU C-Track 60mm
940621-151-0060
Price
--Lead Time available on request
The minimum-order policy is unavailable for this variant.
This variant is not mapped for online checkout. Please request a quote.
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded 4-pole connector with M8 interconnection, available in male or female versions and straight or 90° orientation, provides flexible point-to-point wiring for compact automation layouts. Non-shielded construction is appropriate for standard control and I/O signaling where additional EMI/RFI screening is not required, and no LED is included for applications that do not need local visual status indication.
Specifications
| Specification | Value |
|---|---|
| Poles | 4 |
| Coding | A |
| Protection | IP65 |
| Current | 4 A |
| Voltage | 50 V AC/DC |
| Shielding | No |
| C Track | yes |
| Color | yellow |
| Csa (mm2) | 4x0-25- mm² |
| Jacket | tpee-xlpu |
| Length (mm) | 60 mm |
| Temp Range | 30-to-85 |
Other Configurations
Technical Resources
No verified file is available online for this product. Use the RFQ form for technical-document requests.
