M12 Round Plug Connector M12-M8 Connection Cable Straight/Straight Male/Female 940581
940581
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.

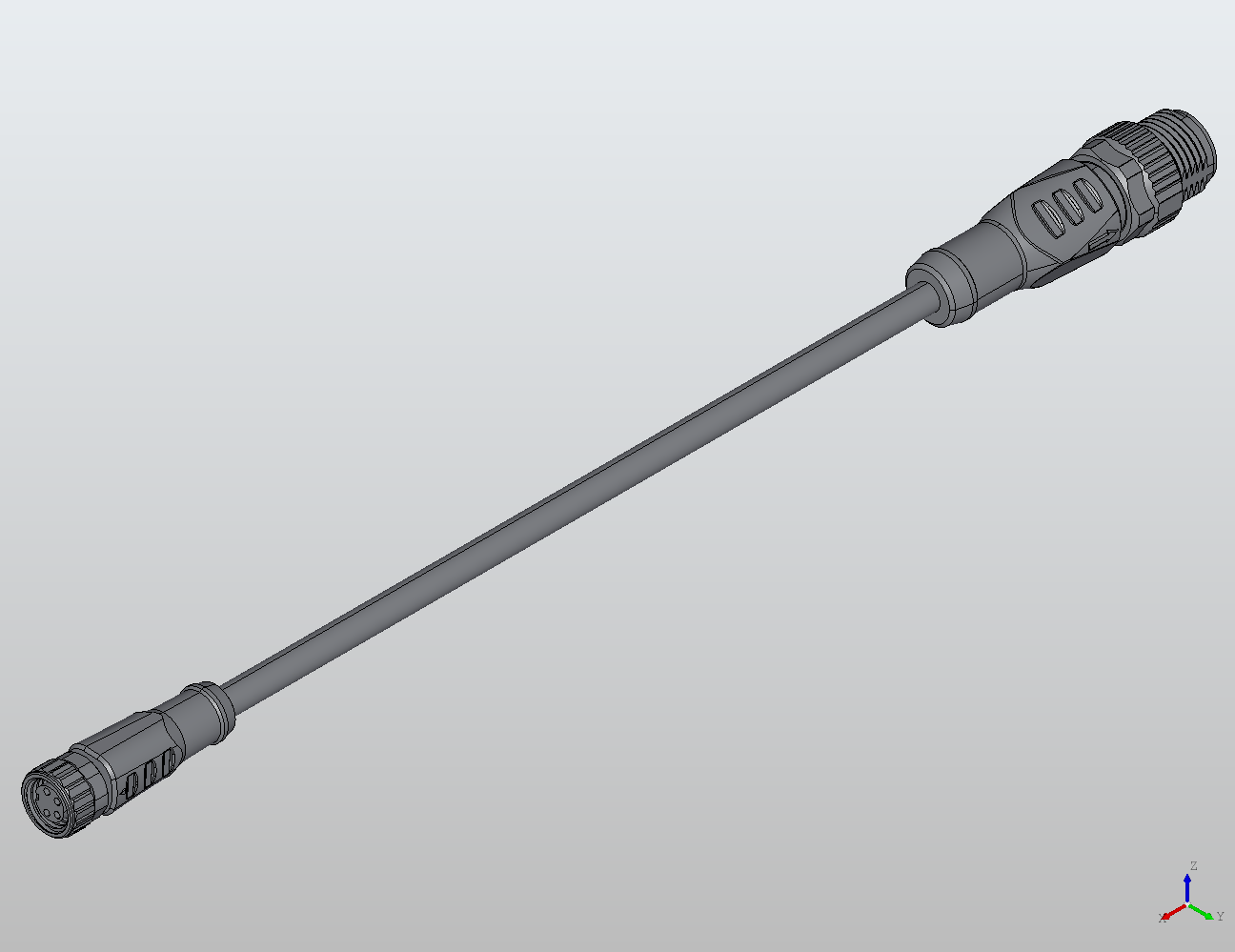

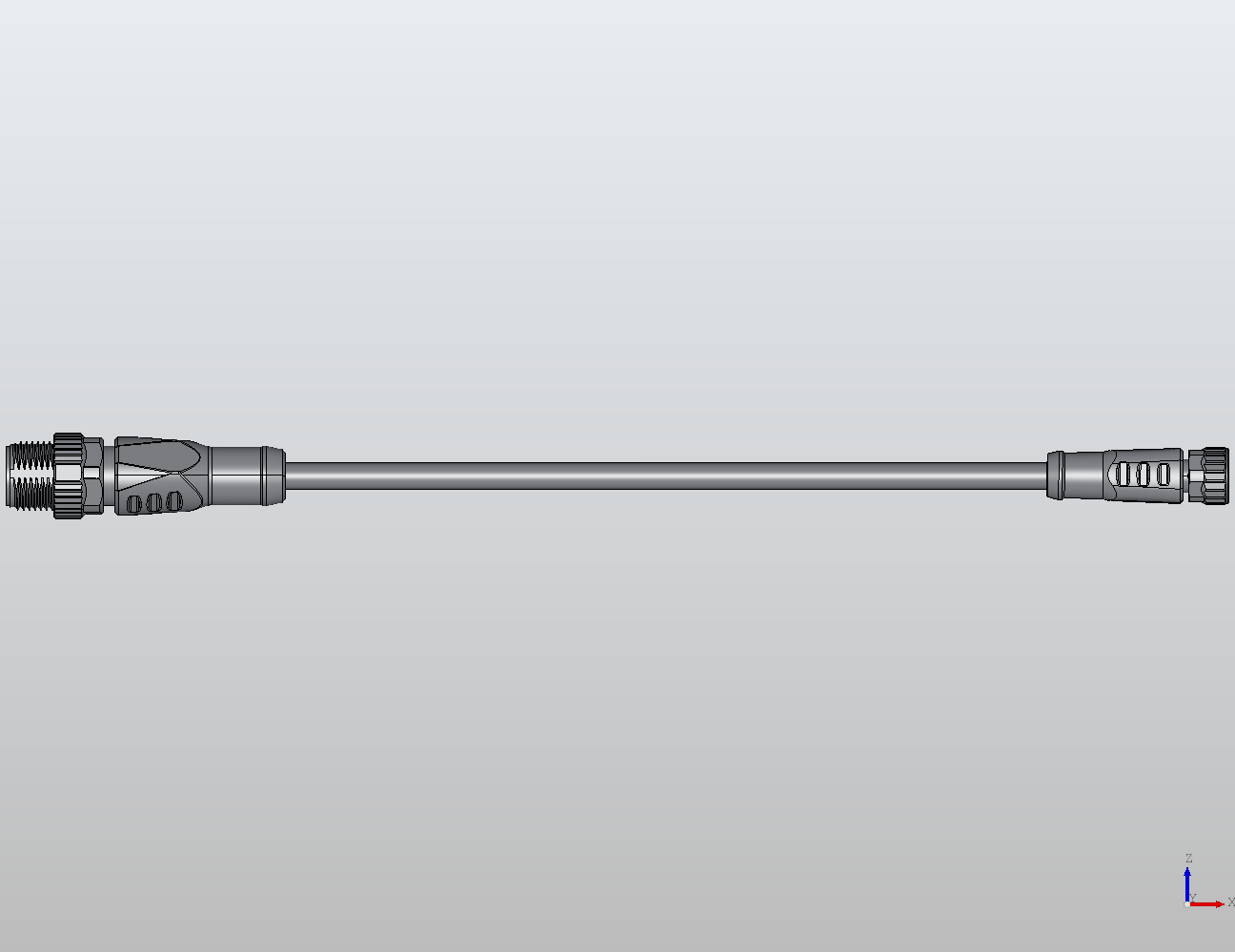

M12 to M8 A-coded 4-pole connector cable, configured as male/female with straight/straight orientation, provides a compact interface for mixed connector sensor and actuator links in industrial automation systems. Unshielded construction suits standard control wiring where strong EMI/RFI countermeasures are not required, and the design is supplied without LED indication for applications that rely on PLC or I/O diagnostics.
Poles 4
Coding A
Gender Male/Female
Direction Straight/Straight
Protection IP65
Current 4
Voltage 50 V AC/DC
Shielding No
LED No
Specifications
| Specification | Value |
|---|---|
| Poles | 4 |
| Coding | A |
| Gender | Male/Female |
| Direction | Straight/Straight |
| Protection | IP65 |
| Current | 4 |
| Voltage | 50 V AC/DC |
| Shielding | No |
| LED | No |
| Lengths | 30, 60, 100, 150, 200 |
Technical Resources
No verified file is available online for this product. Use the RFQ form for technical-document requests.
