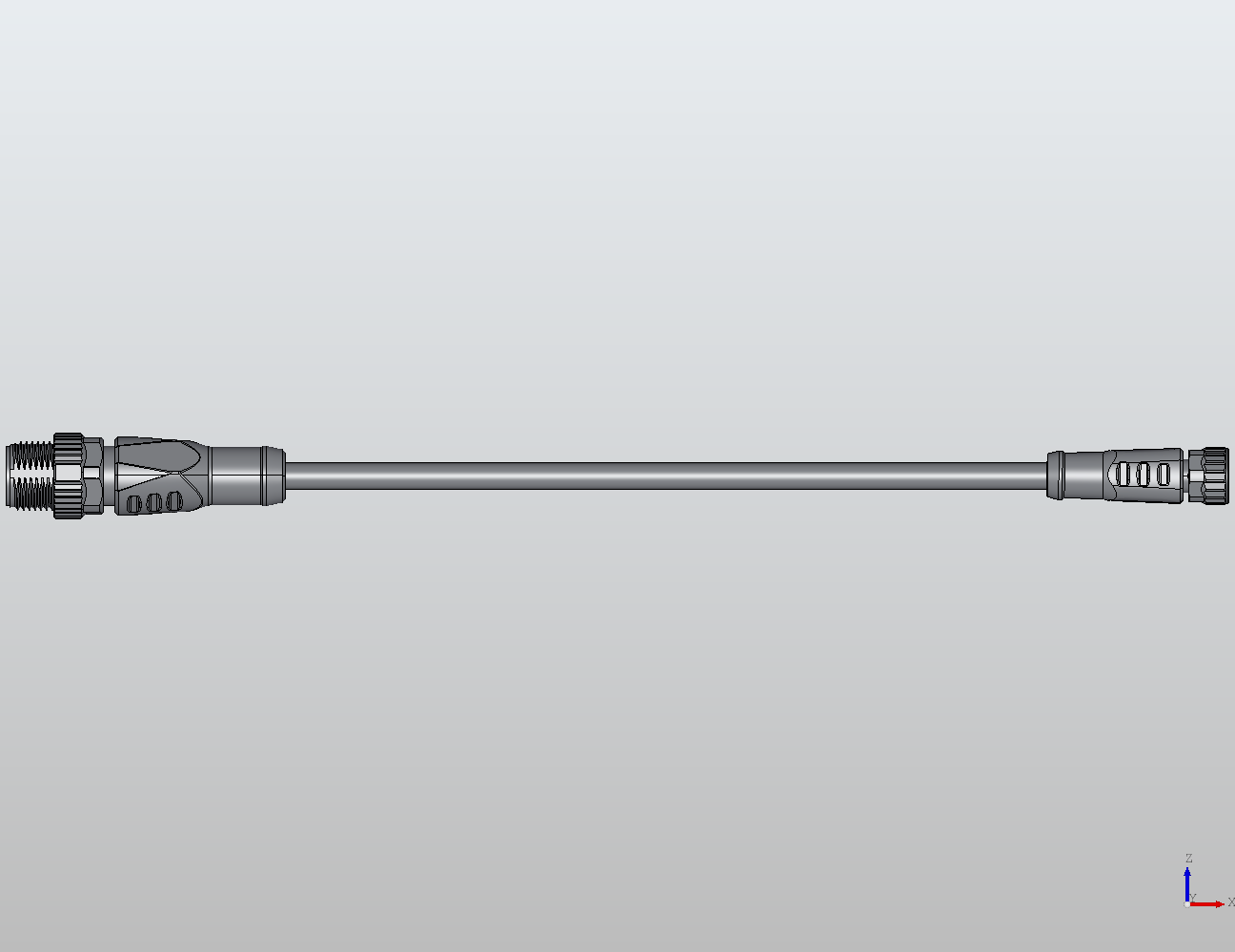

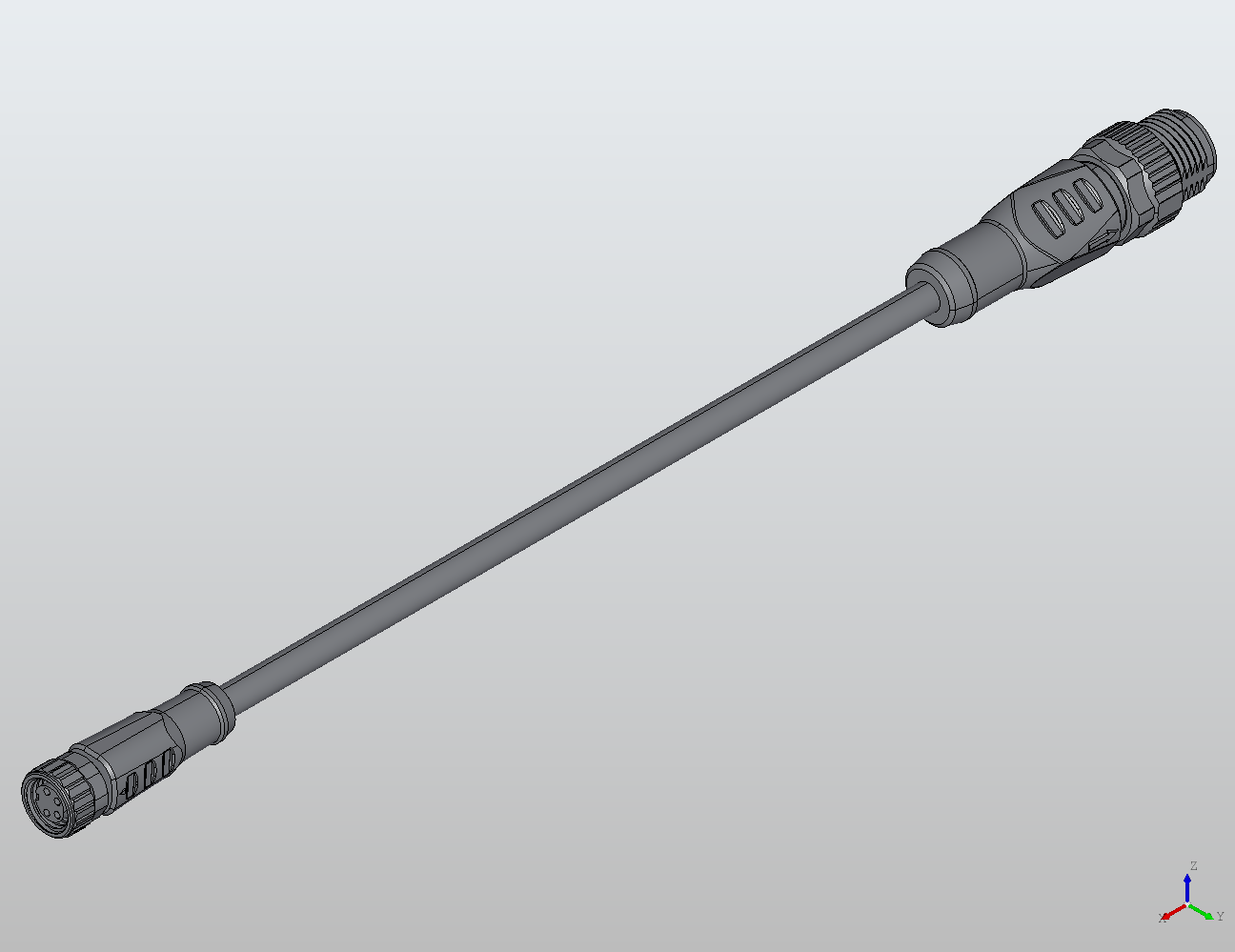

M12 Round Plug Connector M12-M8 Connection Cable Straight/Straight Male/Female 940581 - Grey PVC-PUR 100mm
940581-221-0100
Price
--Lead Time available on request
The minimum-order policy is unavailable for this variant.
This variant is not mapped for online checkout. Please request a quote.
For bulk quantities, custom cable lengths, or project pricing.
M12 to M8 A-coded 4-pole connector cable, configured as male/female with straight/straight orientation, provides a compact interface for mixed connector sensor and actuator links in industrial automation systems. Unshielded construction suits standard control wiring where strong EMI/RFI countermeasures are not required, and the design is supplied without LED indication for applications that rely on PLC or I/O diagnostics.
Specifications
| Specification | Value |
|---|---|
| Poles | 4 |
| Coding | A |
| Protection | IP65 |
| Current | 4 A |
| Voltage | 50 V AC/DC |
| Shielding | No |
| C Track | no |
| Color | grey |
| Csa (mm2) | 4x0-25- mm² |
| Jacket | pvc-pur |
| Length (mm) | 100 mm |
| Temp Range | 30-to-85 |
