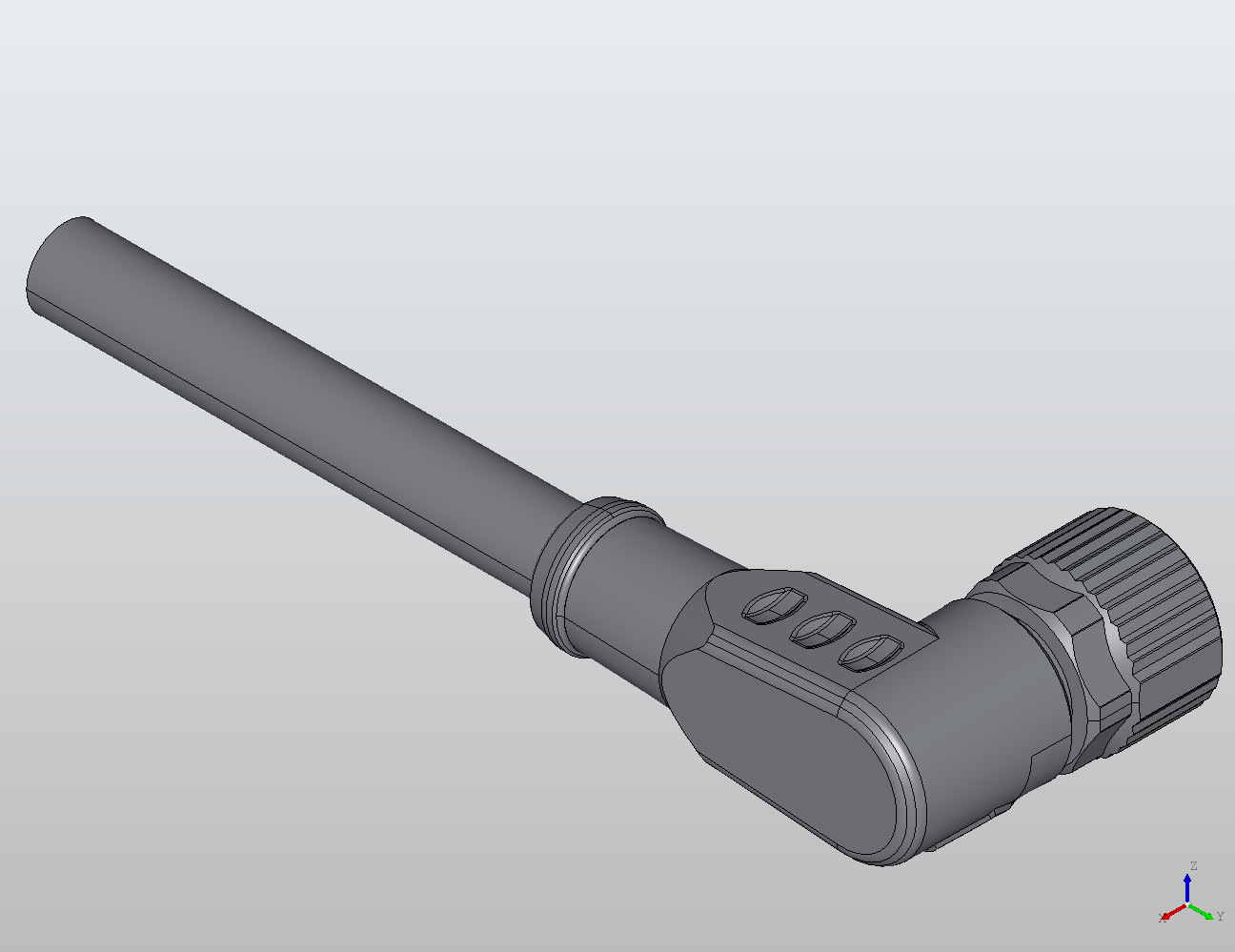

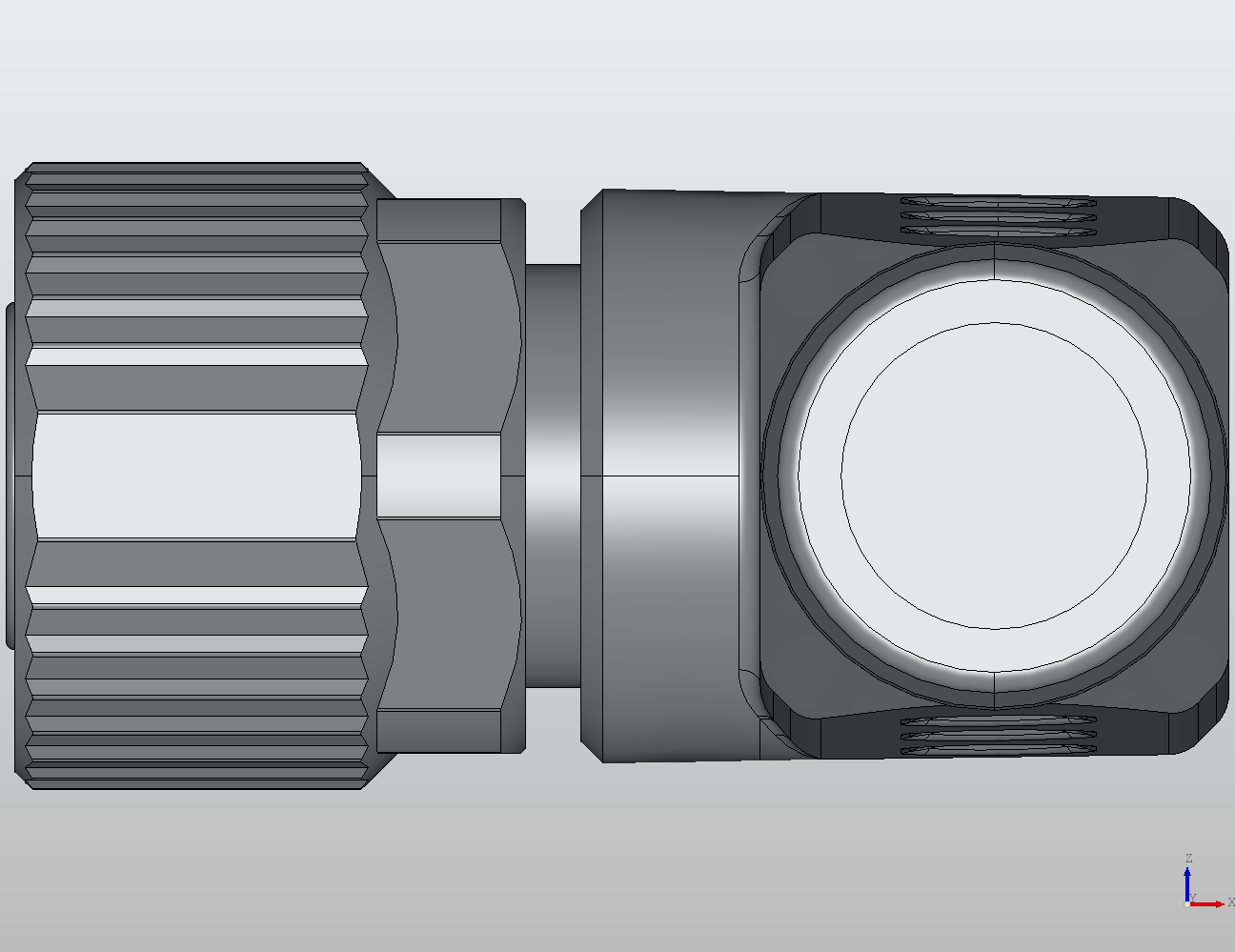

M12 Round Plug Connector Open Ended Wire 90° Female 917061
917061
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded female connector with 8 poles in a 90° angled orientation is designed as an open-ended wire interface for compact routing in industrial assemblies. Commonly used for sensor/actuator wiring, machine-side I/O drops, and auxiliary field connections in automation equipment, it aligns with M12 interface requirements per IEC 61076-2-101.
Poles 8
Coding A
Gender Female
Direction 90°
Protection IP67
Current 2
Voltage 30 V AC/DC
Shielding No
LED No
Specifications
| Specification | Value |
|---|---|
| Poles | 8 |
| Coding | A |
| Gender | Female |
| Direction | 90° |
| Protection | IP67 |
| Current | 2 |
| Voltage | 30 V AC/DC |
| Shielding | No |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
