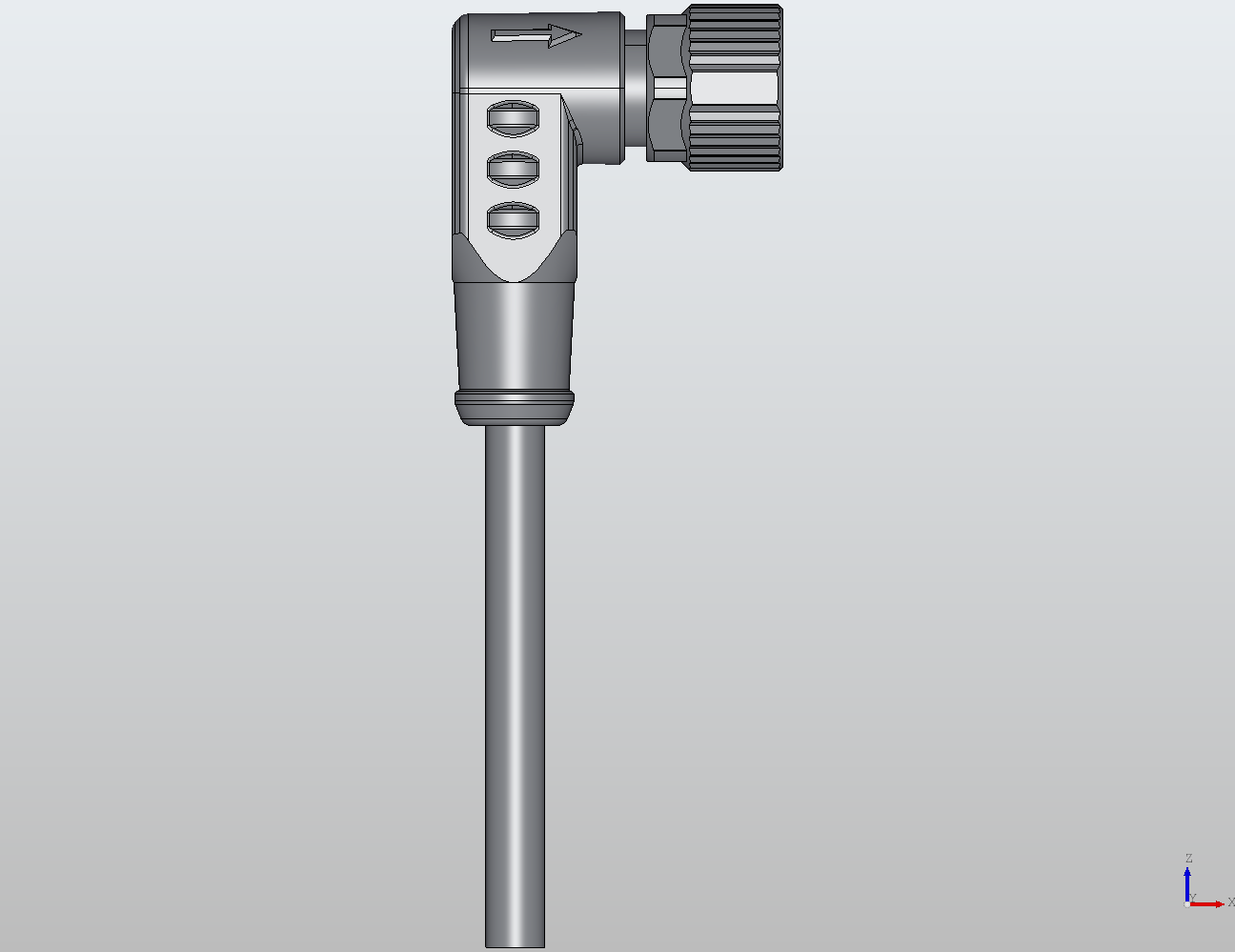

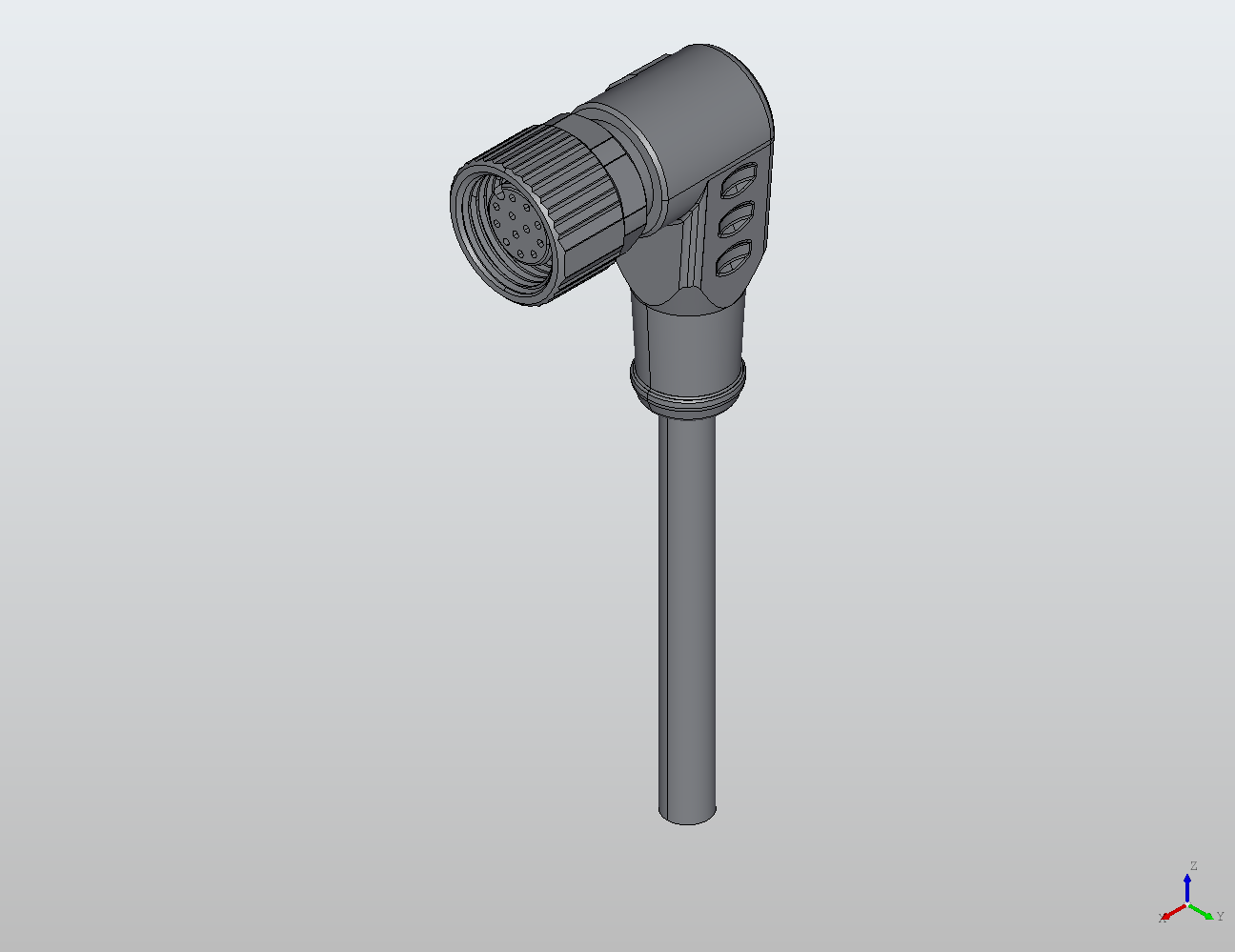

M12 Round Plug Connector Open Ended Wire 90° Female 919061
919061
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded female connector in a 90° orientation with 12 poles is designed as an open-ended wire pigtail for compact machine-side routing in tight installation spaces. Non-shielded construction is suitable for general-purpose sensor/actuator wiring and control circuits where additional EMI/RFI shielding is not required.
Poles 12
Coding A
Gender Female
Direction 90°
Protection IP67
Current 15
Voltage 30 V AC/DC
Shielding No
LED No
Specifications
| Specification | Value |
|---|---|
| Poles | 12 |
| Coding | A |
| Gender | Female |
| Direction | 90° |
| Protection | IP67 |
| Current | 15 |
| Voltage | 30 V AC/DC |
| Shielding | No |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
Technical Resources
No verified file is available online for this product. Use the RFQ form for technical-document requests.
