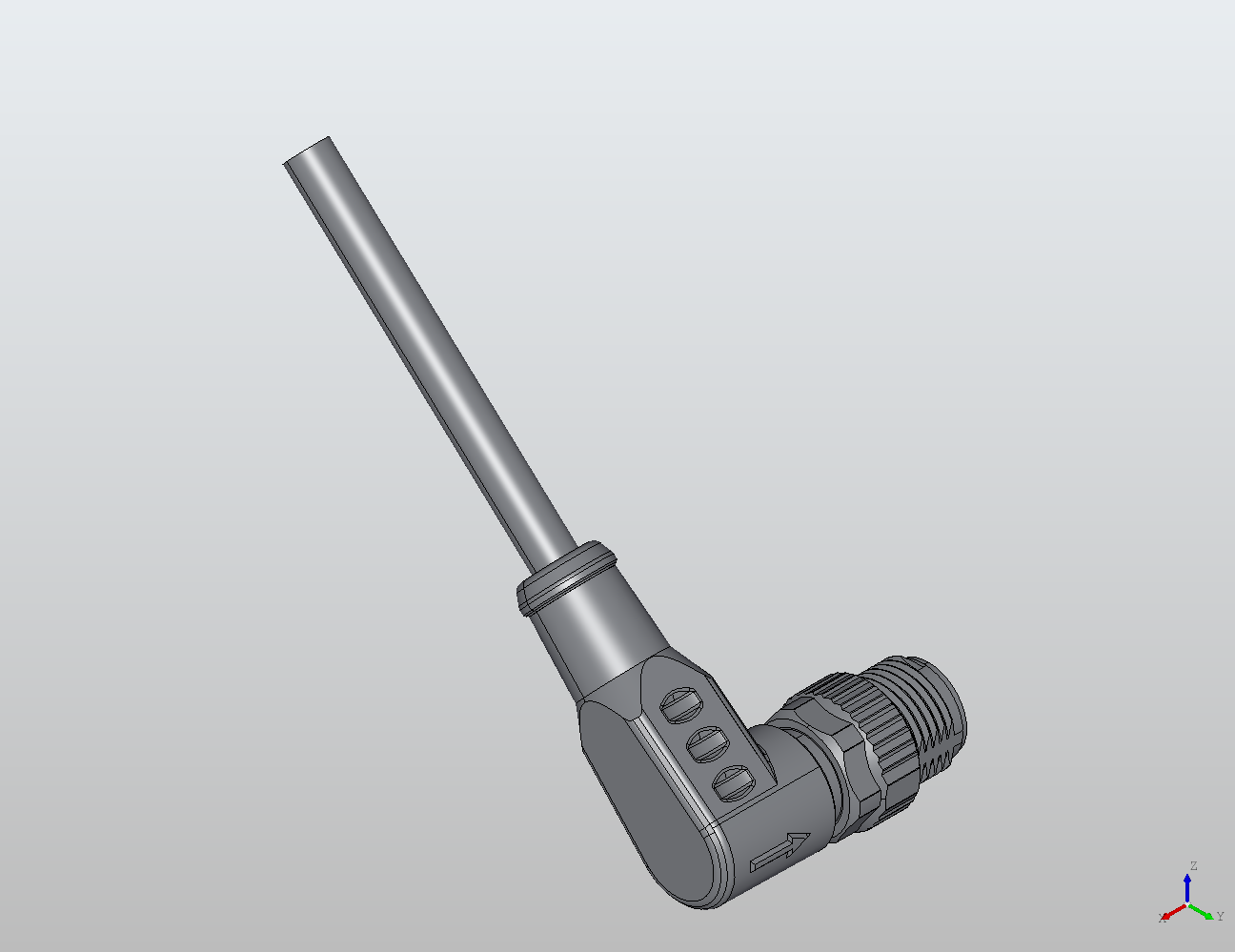

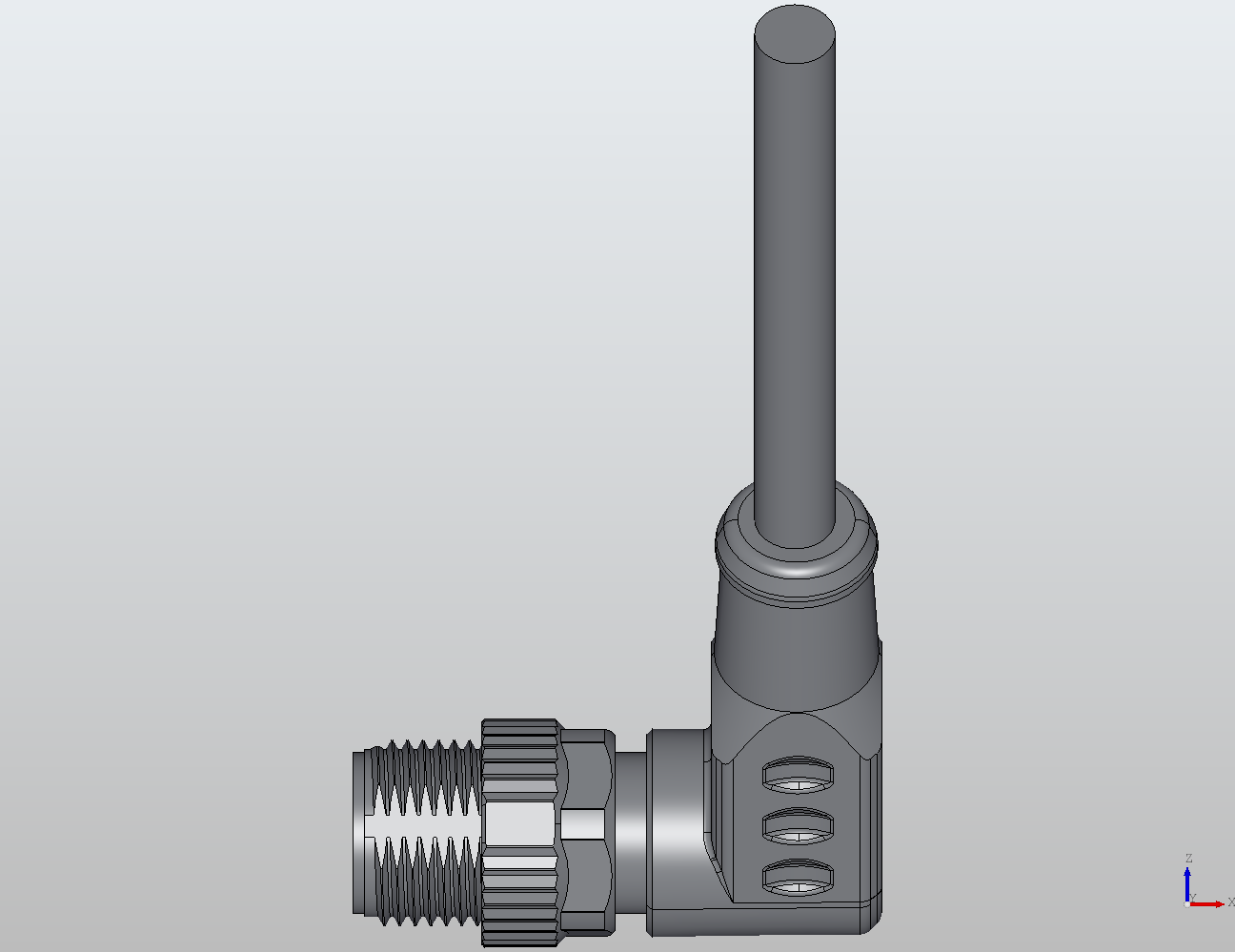

M12 Round Plug Connector Open Ended Wire 90° Male 917021
917021
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded 8-pole male connector with 90° orientation and open-ended wire design (SKU 917021) is intended for compact routing in machine and panel installations. Unshielded construction is suitable for standard control and signal circuits where dedicated EMI/RFI shielding is not required, and the non-LED format keeps integration straightforward when visual indication is handled at the device or PLC level.
Poles 8
Coding A
Gender Male
Direction 90°
Protection IP67
Voltage 30 V AC/DC
Shielding No
LED No
Specifications
| Specification | Value |
|---|---|
| Poles | 8 |
| Coding | A |
| Gender | Male |
| Direction | 90° |
| Protection | IP67 |
| Voltage | 30 V AC/DC |
| Shielding | No |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
Technical Resources
No verified file is available online for this product. Use the RFQ form for technical-document requests.
