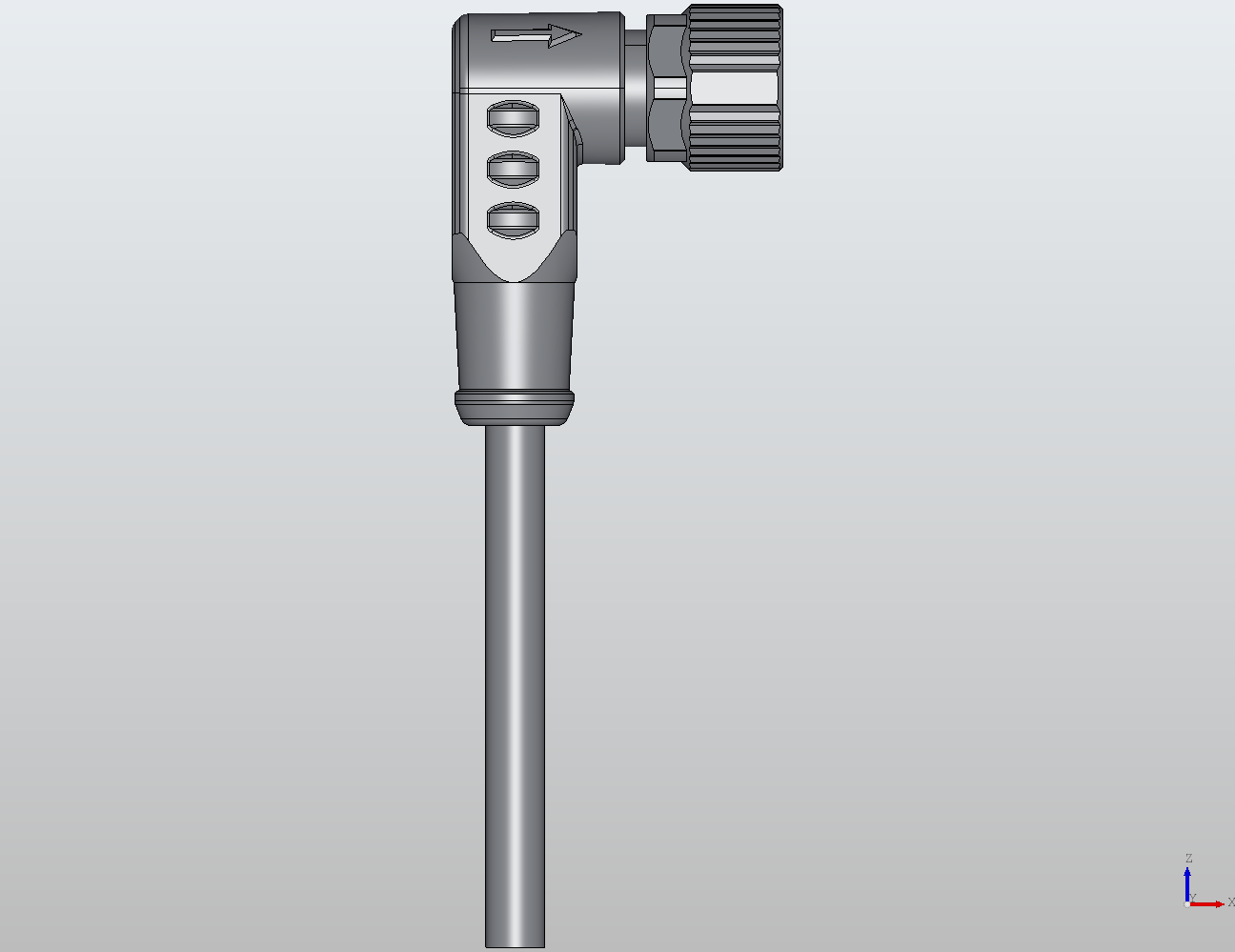

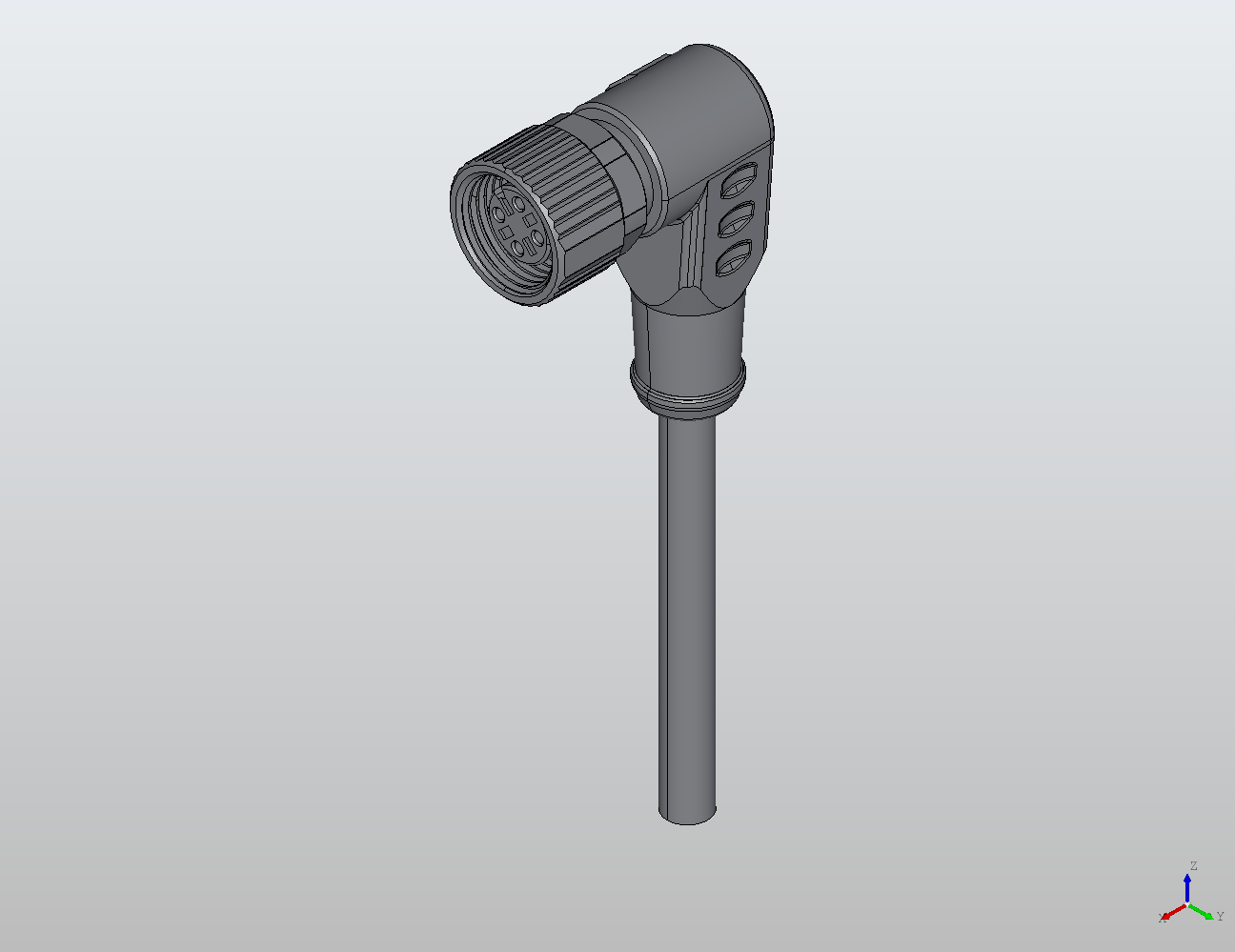

M12 Round Plug Connector Open Ended Wire (Shielded) 90° Female 913261
913261
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded female connector in a 90° orientation with 4 poles is designed as an open-ended wire plug for compact machine-side routing in automation systems. Shielded construction improves EMC performance by reducing EMI/RFI interference, helping maintain stable communication and sensor accuracy near drives, motors, and switching equipment.
Poles 4
Coding A
Gender Female
Direction 90°
Protection IP67
Current 4
Voltage 125 V AC/DC
Shielding Yes
LED No
Specifications
| Specification | Value |
|---|---|
| Poles | 4 |
| Coding | A |
| Gender | Female |
| Direction | 90° |
| Protection | IP67 |
| Current | 4 |
| Voltage | 125 V AC/DC |
| Shielding | Yes |
| LED | No |
| Lengths | 150, 300, 500, 1000 |
Technical Resources
No verified file is available online for this product. Use the RFQ form for technical-document requests.
