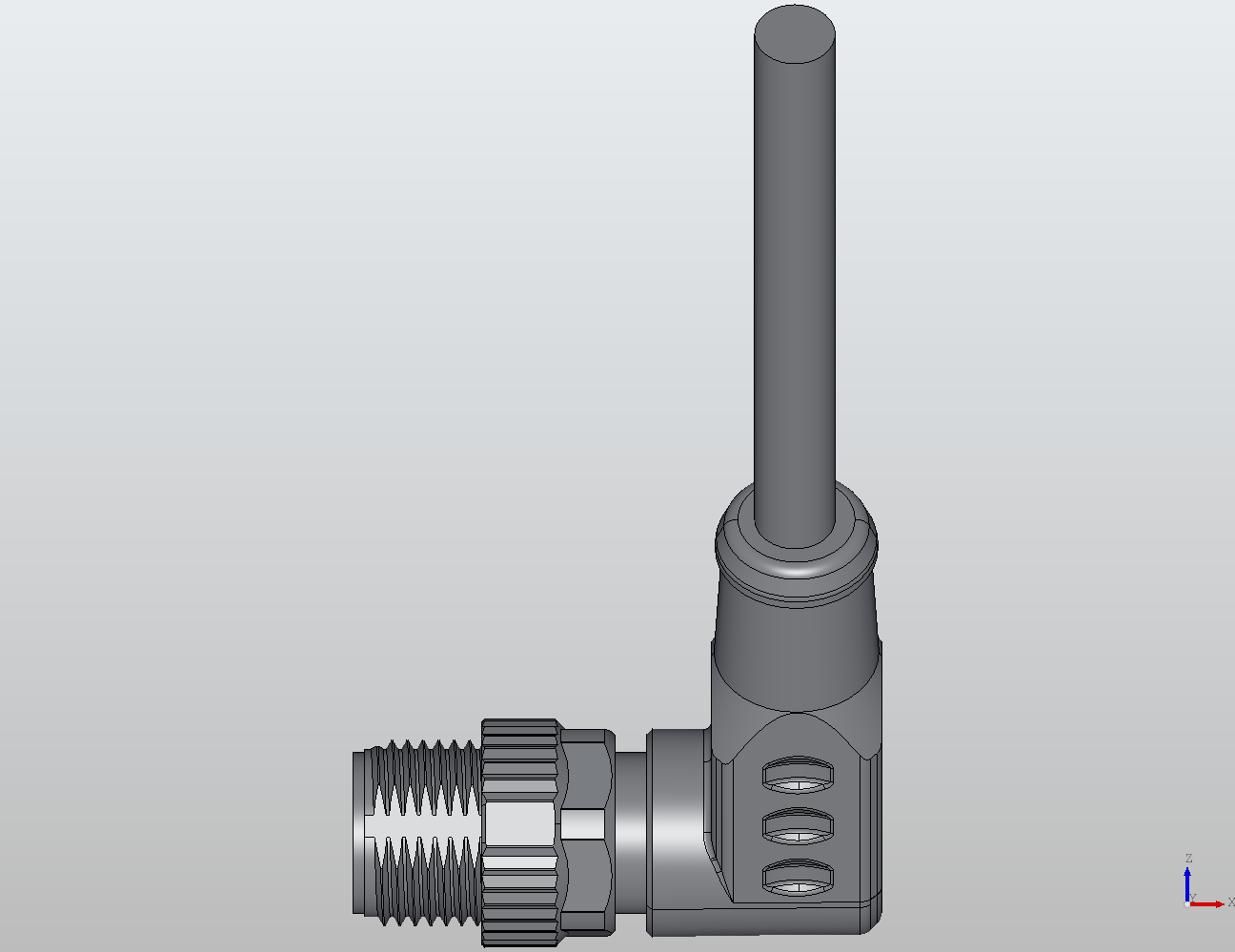

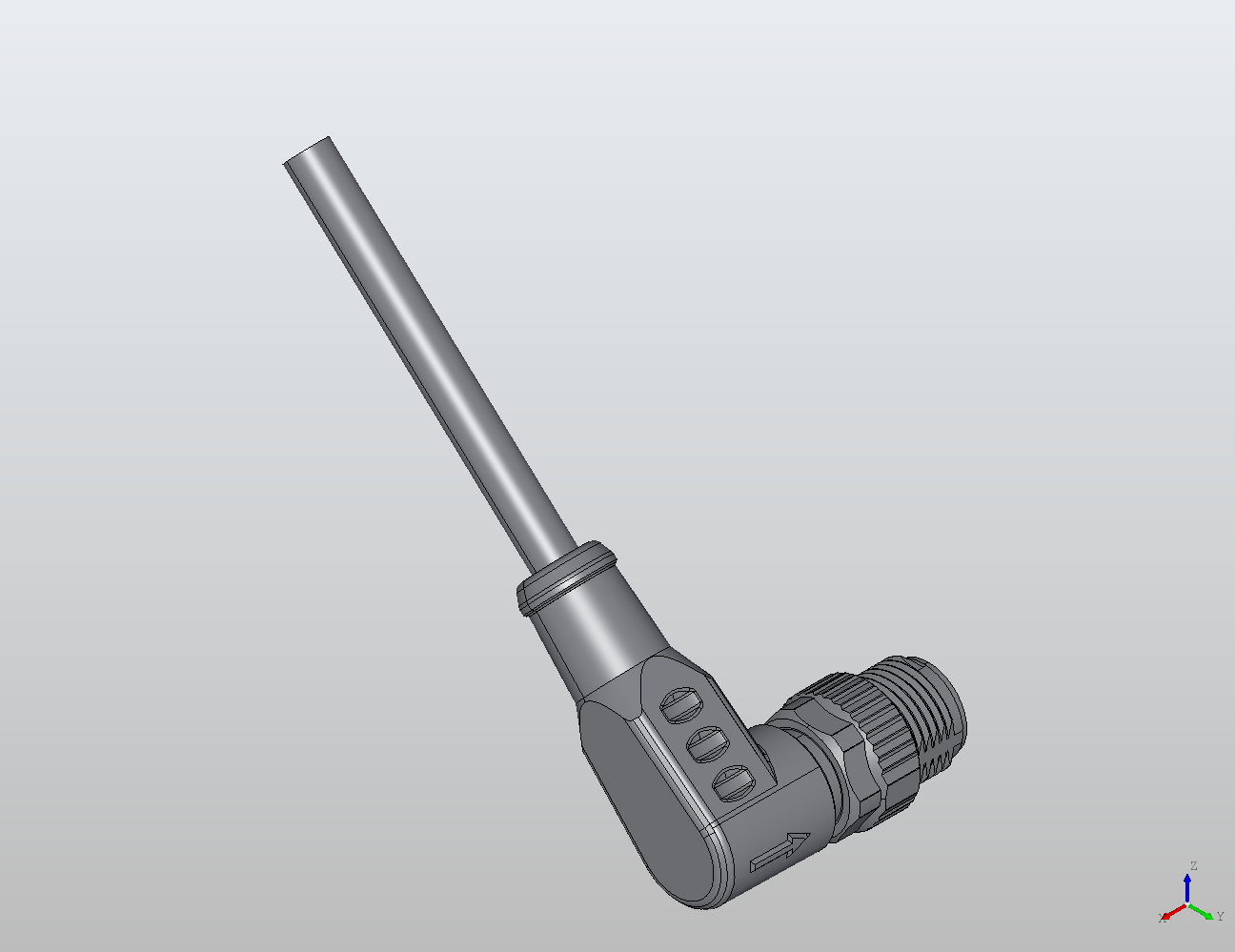

M12 Round Plug Connector Open Ended Wire (Shielded) 90° Male 913141 - PVC 1000mm
913141-330-1000
Price
--Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded 4-pole male connector with a 90° orientation and open-ended wire termination is designed for compact routing in machine wiring layouts. Shielded construction improves EMI/RFI immunity, helping maintain signal integrity near drives, motors, and other noise sources.
Current 12 A
Voltage 125 V AC/DC
Protection IP67
Standard IEC 61076-2-101
Shielding Yes
LED No
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Color | grey |
| Poles | 4 |
| Shielded | Yes |
| Coding | a |
| Jacket | pvc |
| C Track | no |
| Csa (mm2) | 4x0-34-mm² |
| Current (A) | 4A |
| Length (mm) | 1000mm |
| Voltage (V) | 125V AC DCV |
| Protection | ip67 |
| Temp Range | 25-to-85-2 |
