M12 Round Plug Connector Open Ended Wire Straight Female 917041 - PUR C-Track 150mm
917041-295-0150
Price
--Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.

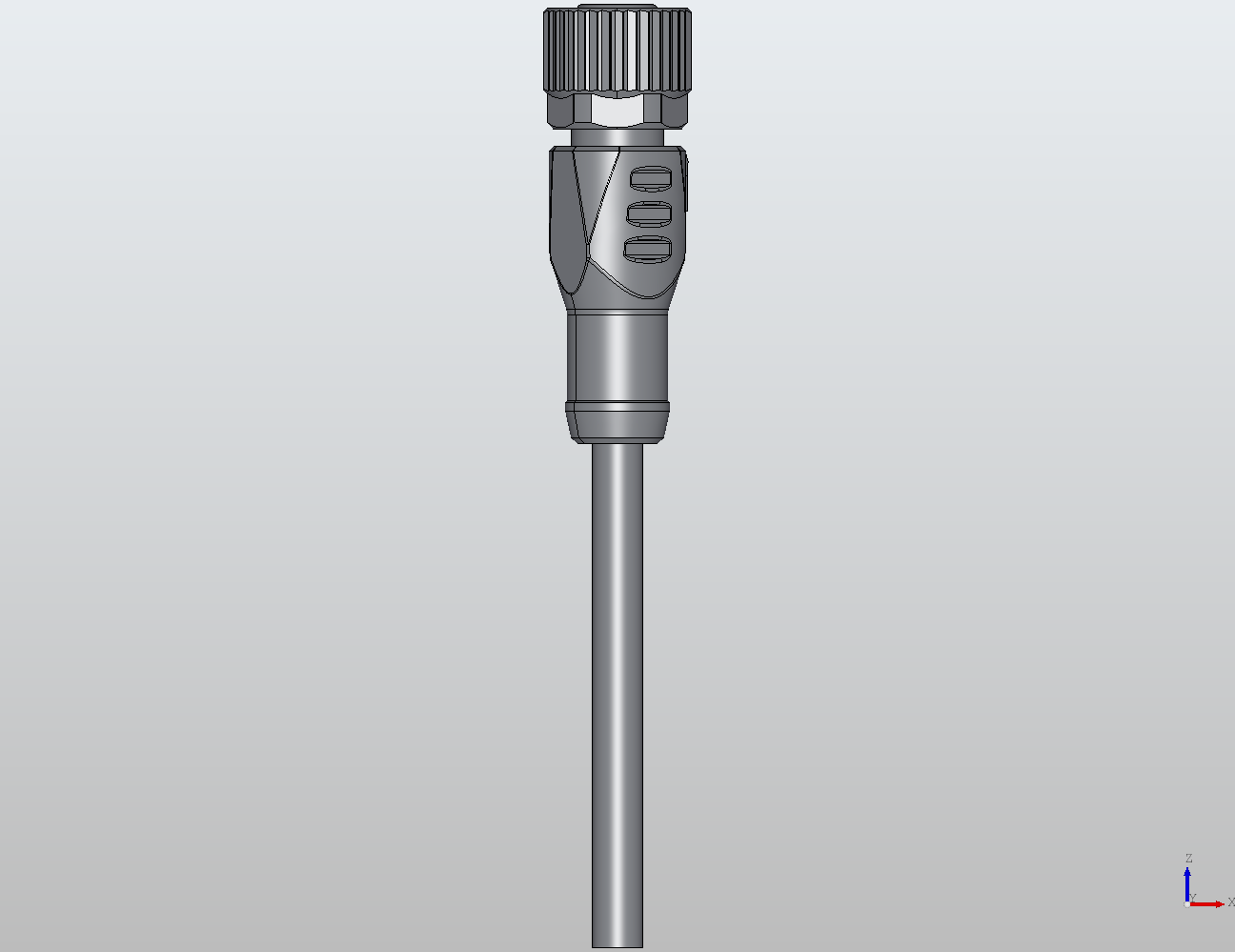

M12 A-coded female straight connector, 8-pole, with open-ended wire lead is designed for compact sensor and actuator interfaces in industrial installations. Configuration follows IEC 61076-2-101 requirements for M12 interconnects, helping ensure compatibility across standard automation devices.
Current 12 A
Voltage 30 V AC/DC
Protection IP67
Standard IEC 61076-2-101
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Color | grey |
| Poles | 8 |
| Shielded | No |
| Coding | a |
| Jacket | pur |
| C Track | yes |
| Csa (mm2) | 8x0-25-mm² |
| Length (mm) | 150mm |
| Voltage (V) | 30V AC DCV |
| Protection | ip67 |
| Temp Range | 40-to-85-2 |
