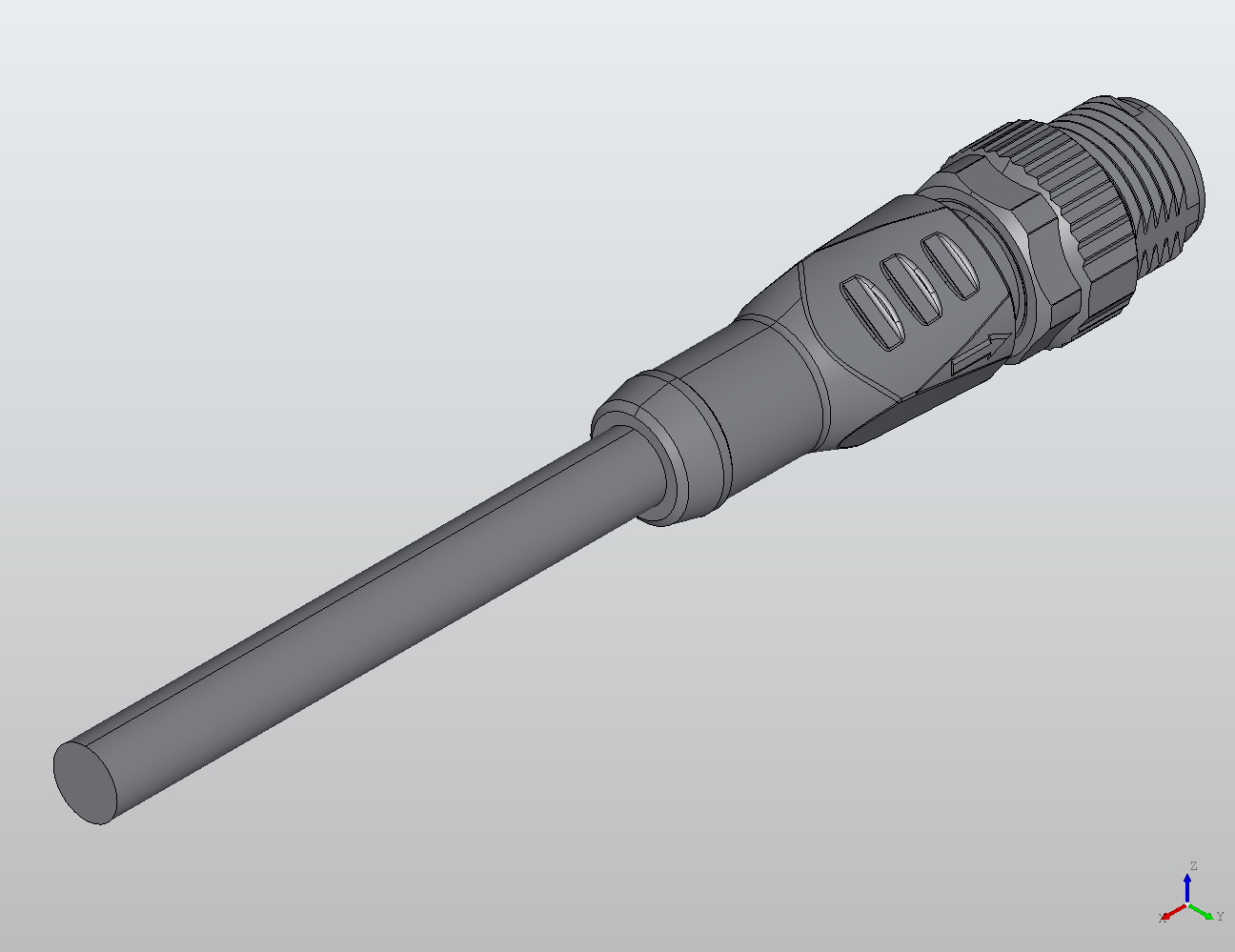

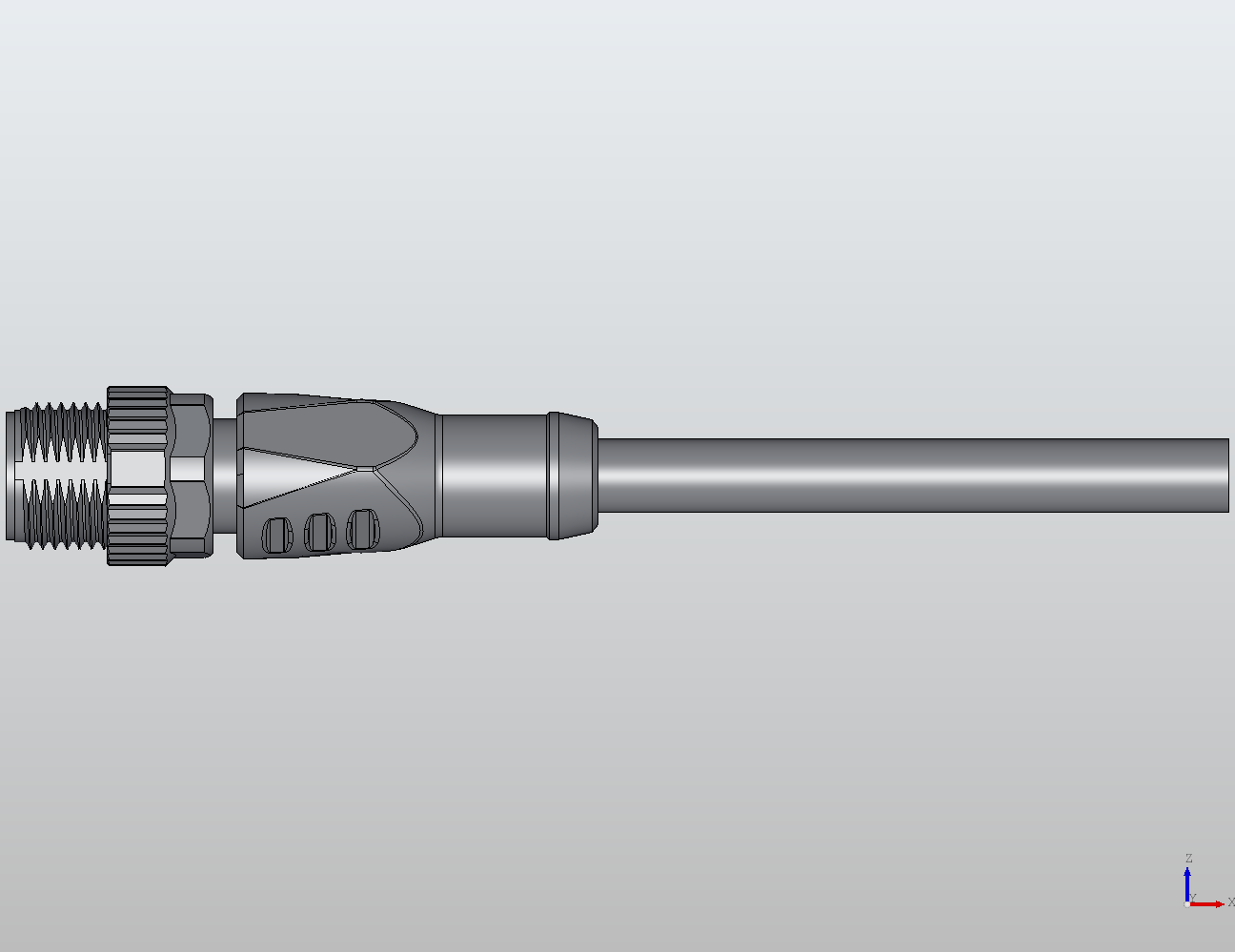

M12 Round Plug Connector Open Ended Wire Straight Male 912041 - Black PVC 750mm
912041-615-0750
Price
--Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M12 A-coded male straight plug connector, 5-pole configuration, is designed for open-ended wire integration in compact industrial wiring layouts. Non-shielded construction suits standard sensor/actuator connections and general machine I/O cabling where dedicated EMI/RFI shielding is not required, and the design does not include an LED indicator, so status is monitored at the device or control level.
Current 12 A
Voltage 125 V AC/DC
Protection IP65
Standard IEC 61076-2-101
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Color | black |
| Poles | 5 |
| Shielded | No |
| Coding | a |
| Jacket | pvc |
| C Track | no |
| Csa (mm2) | 5x0-34-mm² |
| Current (A) | 4A |
| Length (mm) | 750mm |
| Voltage (V) | 125V AC DCV |
| Protection | ip65 |
| Temp Range | 25-to-85-2 |
Other Configurations
M12 Round Plug Connector Open Ended Wire Straight Male 912041 - Grey PVC-PVC 150mm (912041-215-0150)
M12 Round Plug Connector Open Ended Wire Straight Male 912041 - Grey PVC-PVC 300mm (912041-215-0300)
M12 Round Plug Connector Open Ended Wire Straight Male 912041 - Grey PVC-PVC 500mm (912041-215-0500)
M12 Round Plug Connector Open Ended Wire Straight Male 912041 - Grey PVC-PVC 750mm (912041-215-0750)
M12 Round Plug Connector Open Ended Wire Straight Male 912041 - Grey PVC-PVC 1000mm (912041-215-1000)
M12 Round Plug Connector Open Ended Wire Straight Male 912041 - Grey PVC-PUR 150mm (912041-225-0150)
M12 Round Plug Connector Open Ended Wire Straight Male 912041 - Grey PVC-PUR 300mm (912041-225-0300)
M12 Round Plug Connector Open Ended Wire Straight Male 912041 - Grey PVC-PUR 500mm (912041-225-0500)
M12 Round Plug Connector Open Ended Wire Straight Male 912041 - Grey PVC-PUR 750mm (912041-225-0750)
M12 Round Plug Connector Open Ended Wire Straight Male 912041 - Grey PVC-PUR 1000mm (912041-225-1000)
View all 25 configurations
