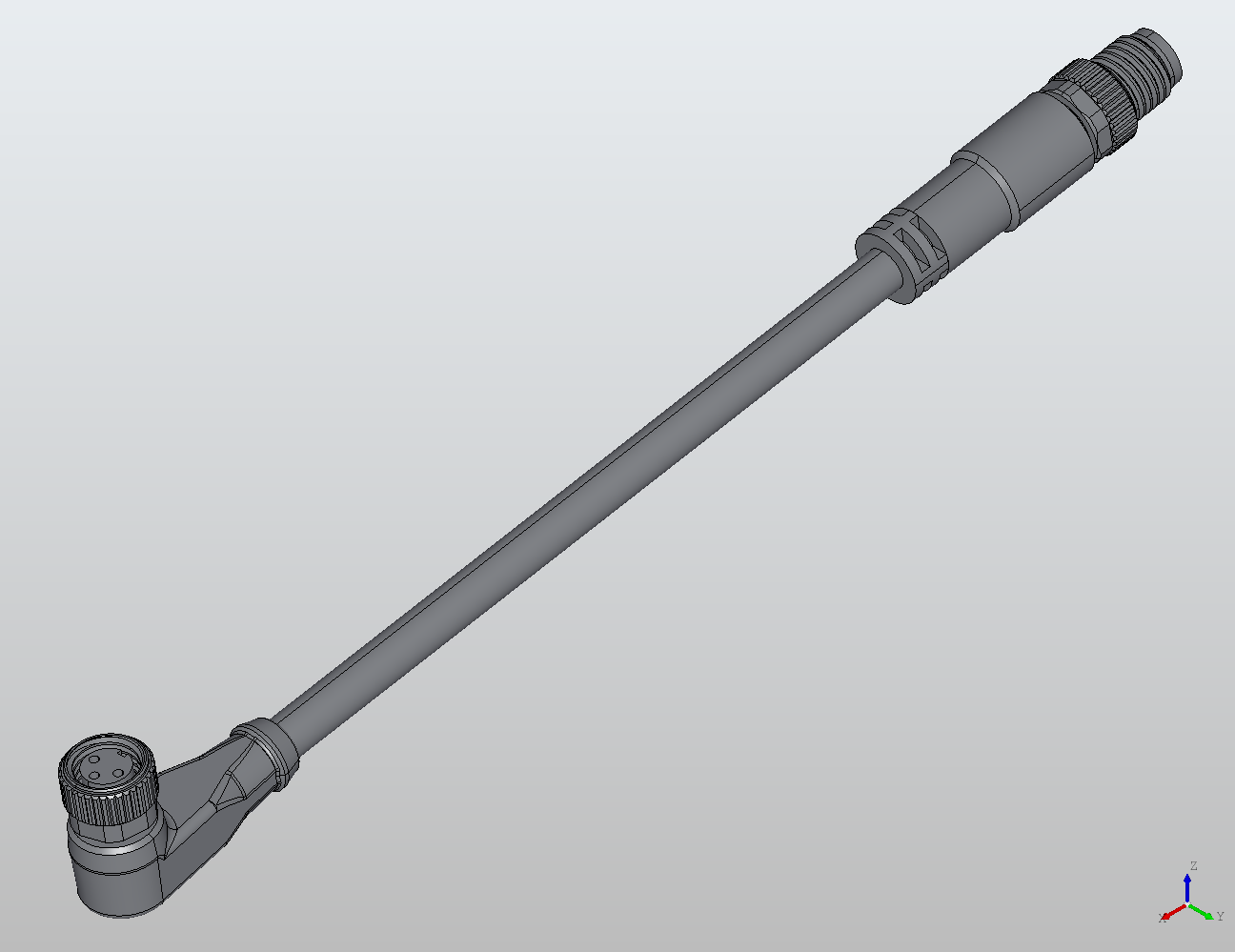

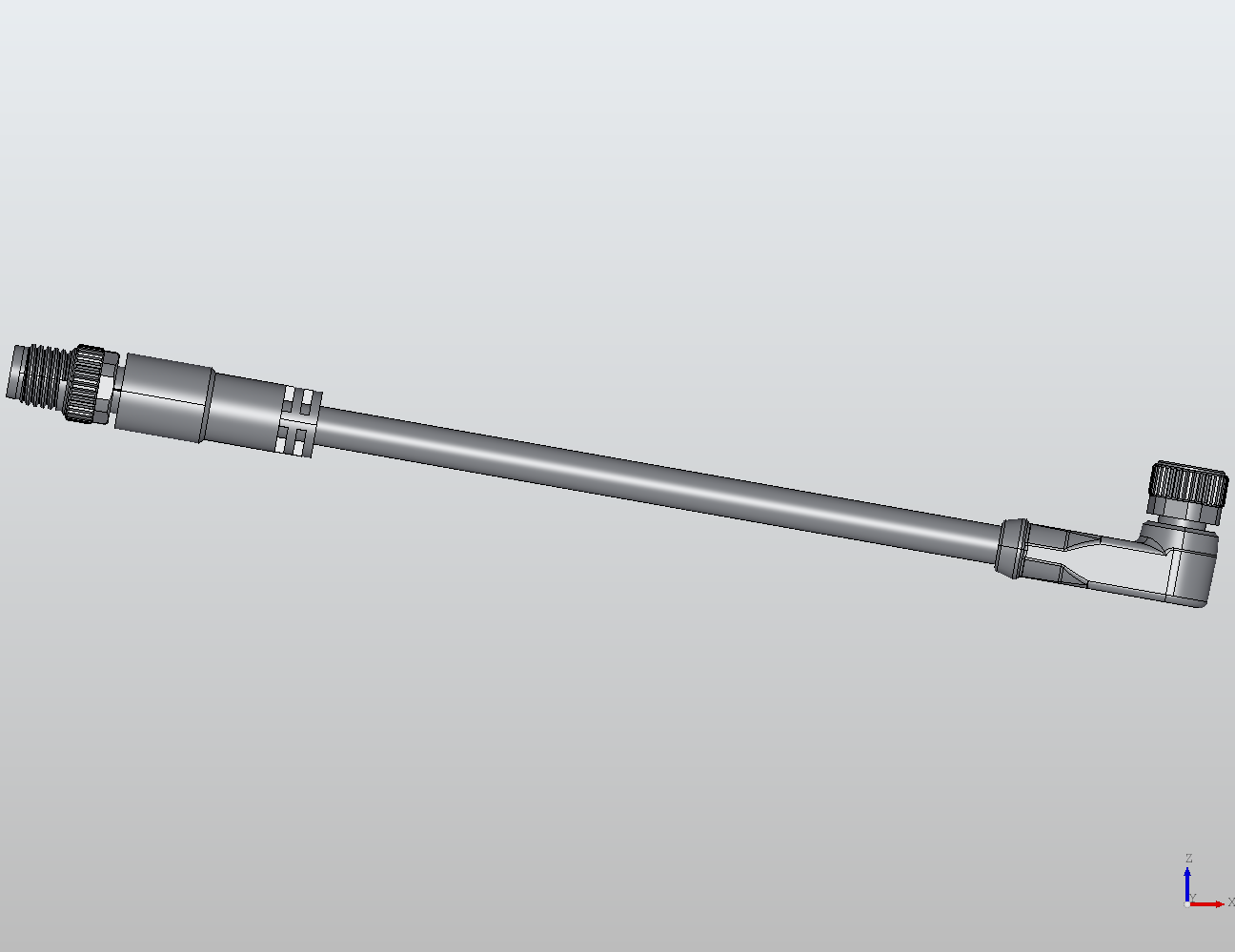

M8 Round Plug Connector M8-M8 Connection Cable (Shielded) Straight/90° Male/Female 988821 - 500mm
988821-707-500
Price
--Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M8 A-coded 3-pole connector cable assembly, available in male/female and straight/90° orientations, is designed for compact machine interfaces and reliable M8-to-M8 interconnection in automation systems. Shielded construction improves EMI/RFI immunity, helping maintain signal integrity around motors, drives, and switching equipment.
Poles 3
Coding A
Protection IP65
Current 4 A
Voltage 50 V AC 60 V DC
Shielding Yes
Specifications
| Specification | Value |
|---|---|
| Poles | 3 |
| Coding | A |
| Protection | IP65 |
| Current | 4 A |
| Voltage | 50 V AC 60 V DC |
| Shielding | Yes |
| C Track | yes |
| Color | black |
| Csa (mm2) | 3x0-25- mm² |
| Jacket | pur |
| Length (mm) | 500 mm |
| Temp Range | 30-to-85 |
Other Configurations
M8 Round Plug Connector M8-M8 Connection Cable (Shielded) Straight/90° Male/Female 988821 - 1000mm (988821-707-1000)
M8 Round Plug Connector M8-M8 Connection Cable (Shielded) Straight/90° Male/Female 988821 - 150mm (988821-707-150)
M8 Round Plug Connector M8-M8 Connection Cable (Shielded) Straight/90° Male/Female 988821 - 300mm (988821-707-300)
M8 Round Plug Connector M8-M8 Connection Cable (Shielded) Straight/90° Male/Female 988821 - 750mm (988821-707-750)
Technical Resources
No verified file is available online for this product. Use the RFQ form for technical-document requests.
