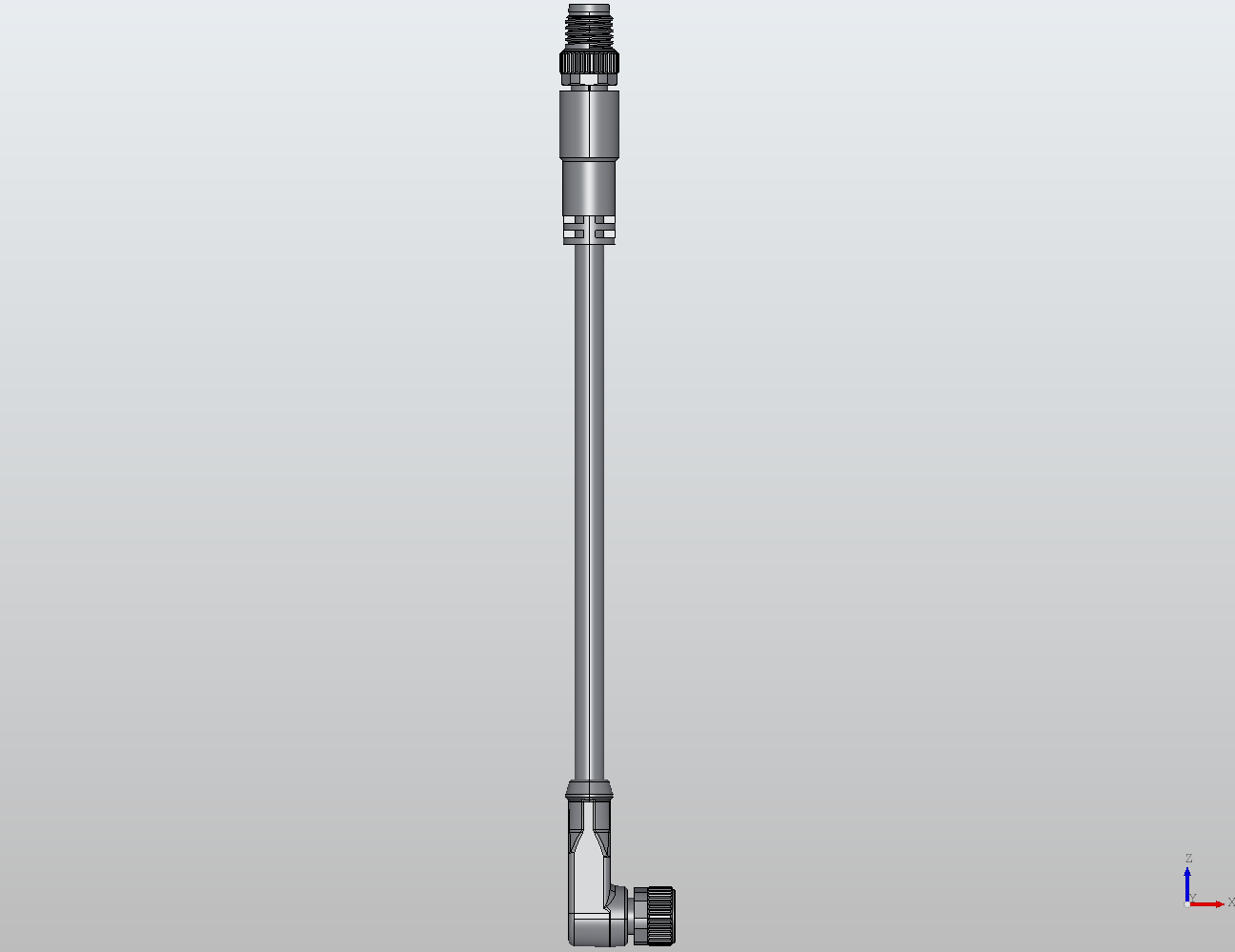

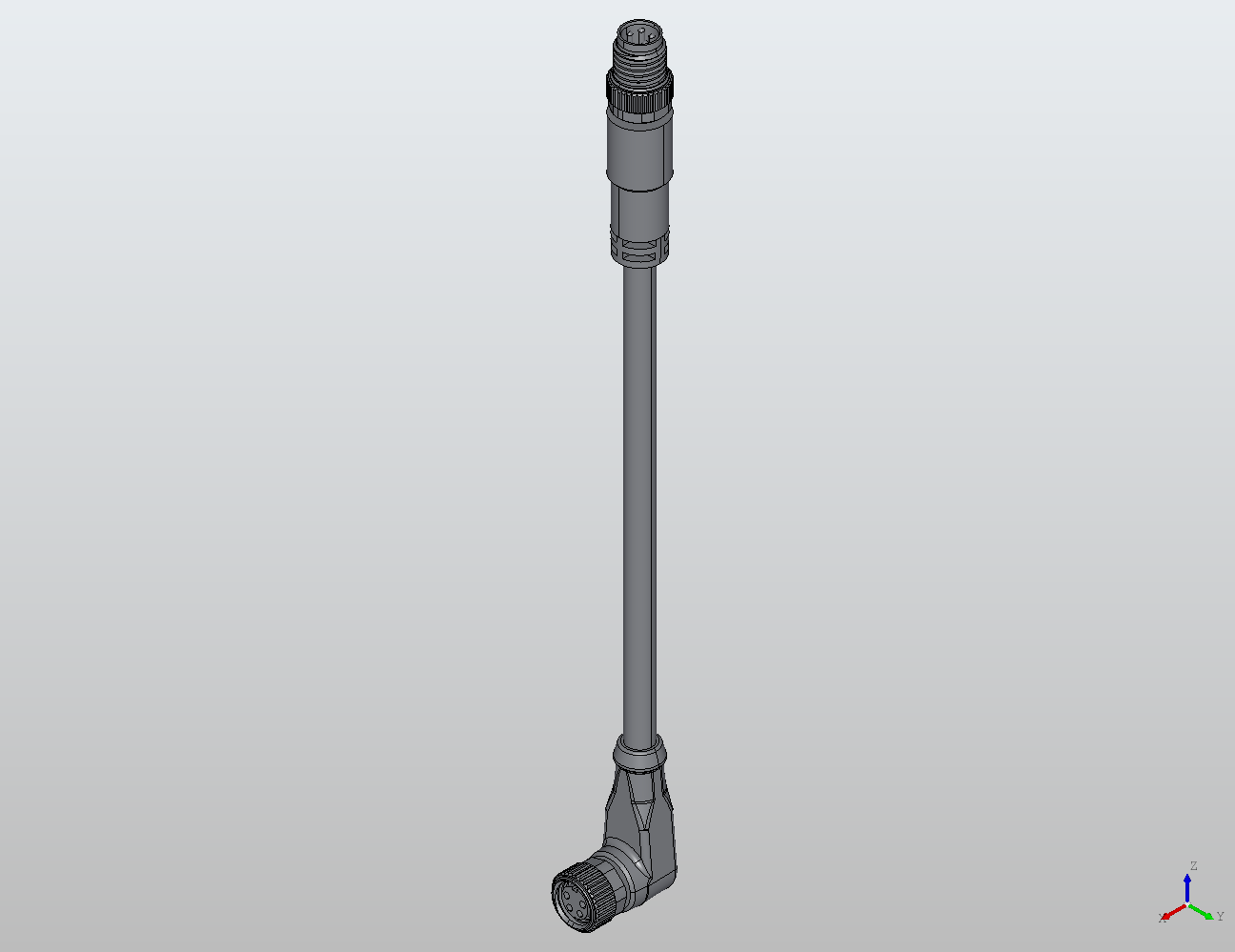

M8 Round Plug Connector M8-M8 Connection Cable (Shielded) Straight/90° Male/Female 988831 - 150mm
988831-717-150
Price
--Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M8 A-coded 4-pole male/female connector cable in straight or 90° orientation provides an M8-to-M8 shielded connection for flexible device interfacing in compact automation layouts. Designed for typical sensor/actuator wiring and suitable for fieldbus and compact industrial Ethernet-adjacent installations where M8 interfaces are specified, this cable supports stable operation across short interconnect runs.
Current 8 A
Voltage 50 V AC / 60 V DC
Protection IP65
Standard IEC 61076-2-104
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Color | black |
| Poles | 4 |
| Shielded | Yes |
| Coding | a |
| Jacket | pur |
| C Track | yes |
| Csa (mm2) | 4x0-25-mm² |
| Current (A) | 4A |
| Length (mm) | 150mm |
| Voltage (V) | 50V AC 60V DCV |
| Protection | ip65 |
| Temp Range | 30-to-85 |
Other Configurations
M8 Round Plug Connector M8-M8 Connection Cable (Shielded) Straight/90° Male/Female 988831 - 1000mm (988831-717-1000)
M8 Round Plug Connector M8-M8 Connection Cable (Shielded) Straight/90° Male/Female 988831 - 300mm (988831-717-300)
M8 Round Plug Connector M8-M8 Connection Cable (Shielded) Straight/90° Male/Female 988831 - 500mm (988831-717-500)
M8 Round Plug Connector M8-M8 Connection Cable (Shielded) Straight/90° Male/Female 988831 - 750mm (988831-717-750)
