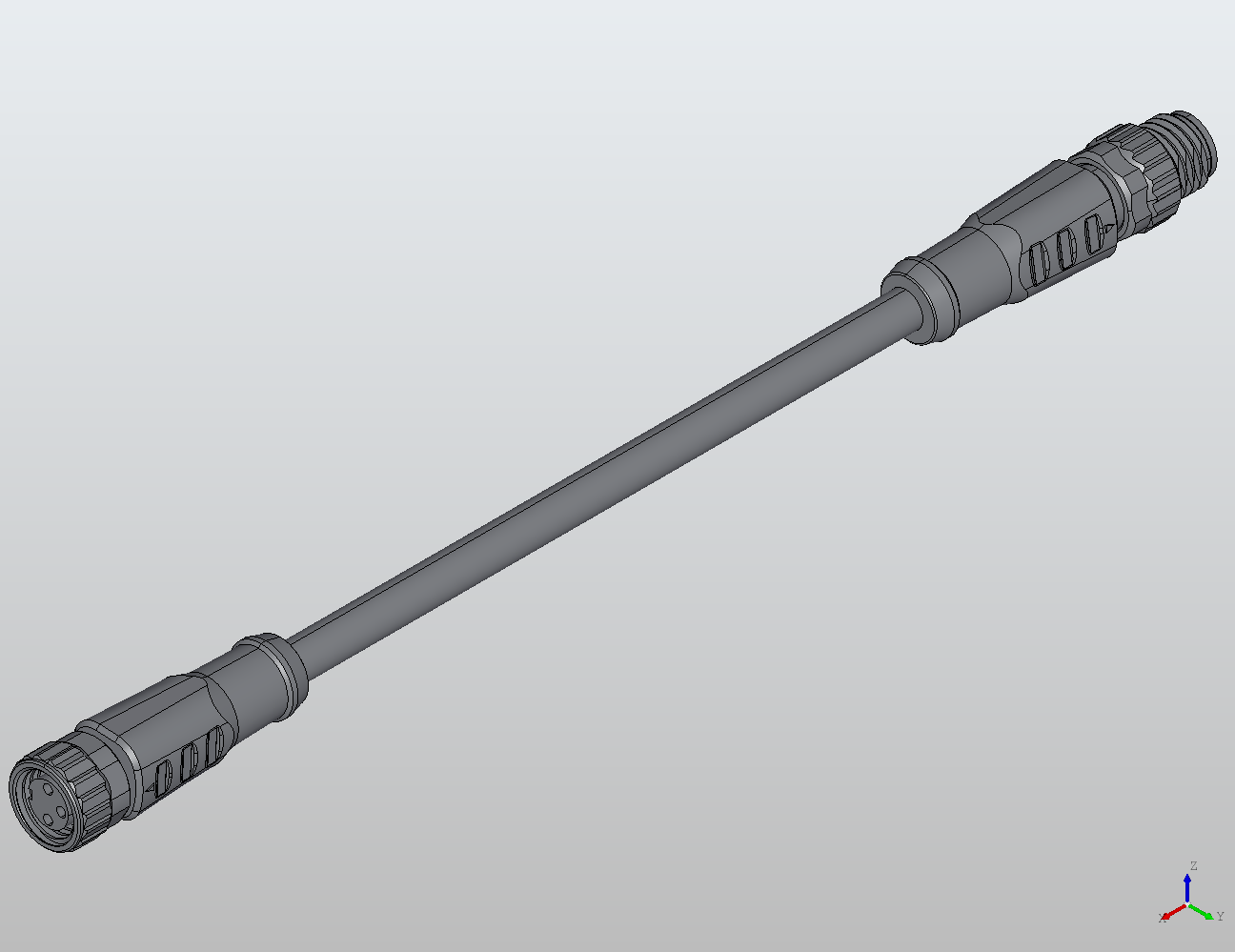

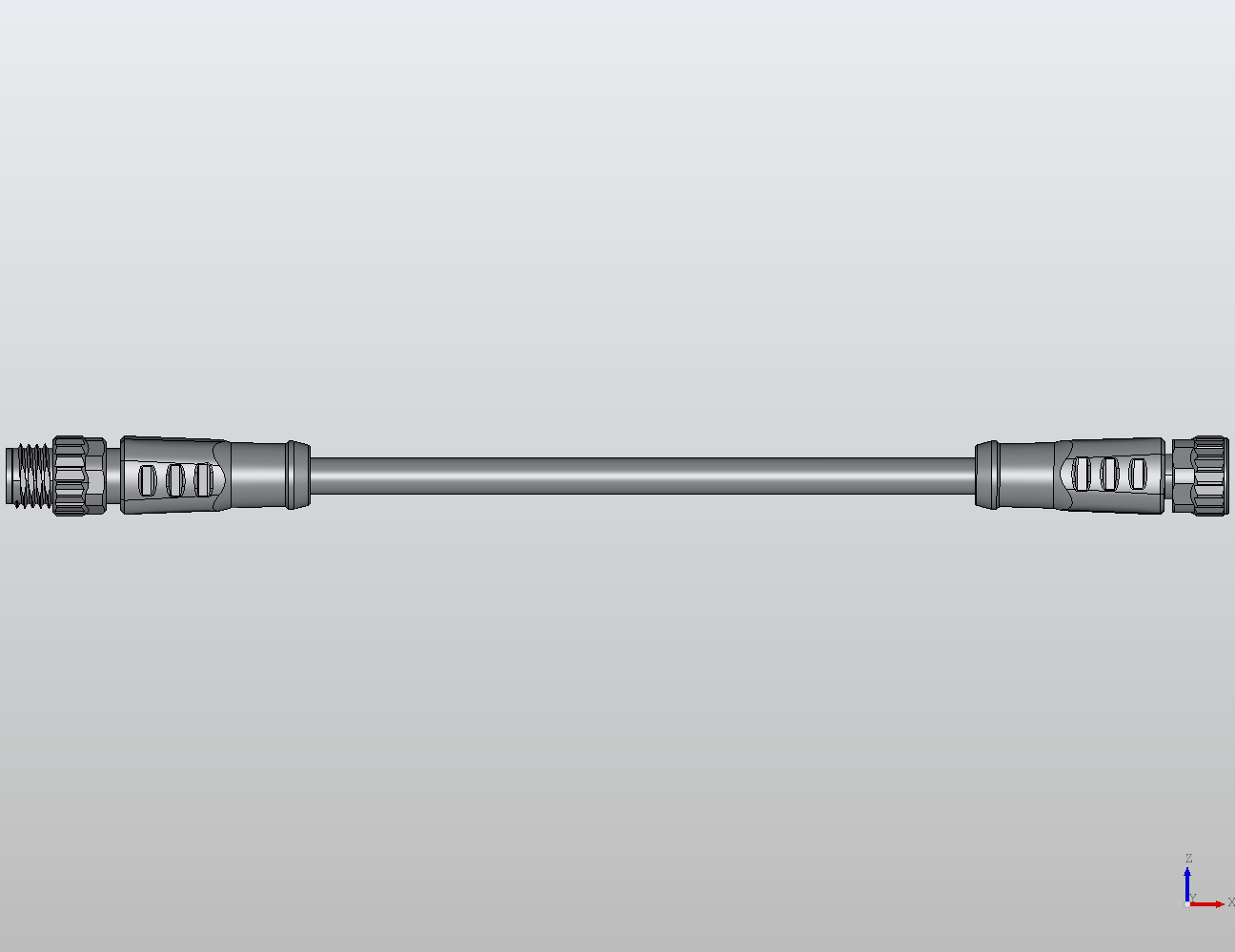

M8 Round Plug Connector M8-M8 Connection Cable Straight/Straight Male/Female 988001 - Orange TPEE-XLPU C-Track 1000mm
988001-050-1000
Price
--Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M8 A-coded 3-pole male/female connection cable with straight/straight orientation (SKU 988001) is designed for compact sensor and actuator interfaces in industrial automation panels and machine wiring. IP65 protection helps maintain performance in dusty or splash-prone installation areas when properly mated.
Current 8 A
Voltage 50 VAC / 60 VDC
Protection IP65
Standard IEC 61076-2-104
Shielding Yes
LED No
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Color | orange |
| Poles | 3 |
| Shielded | No |
| Coding | a |
| Jacket | tpee-xlpu |
| C Track | yes |
| Csa (mm2) | 3x0-25-mm² |
| Current (A) | 4A |
| Length (mm) | 1000mm |
| Voltage (V) | 50V AC 60V DCV |
| Protection | ip65 |
| Temp Range | 25-to-85 |
