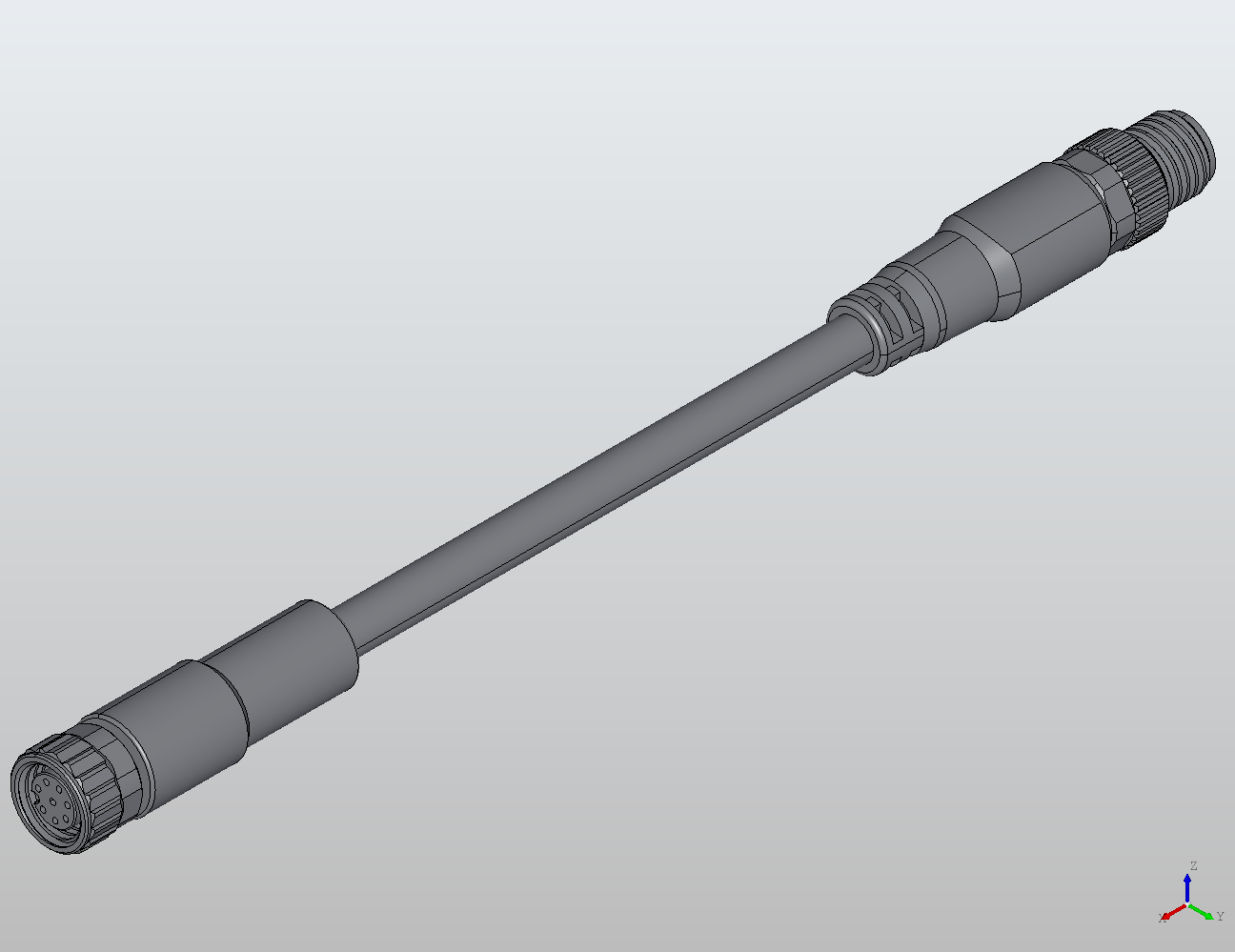

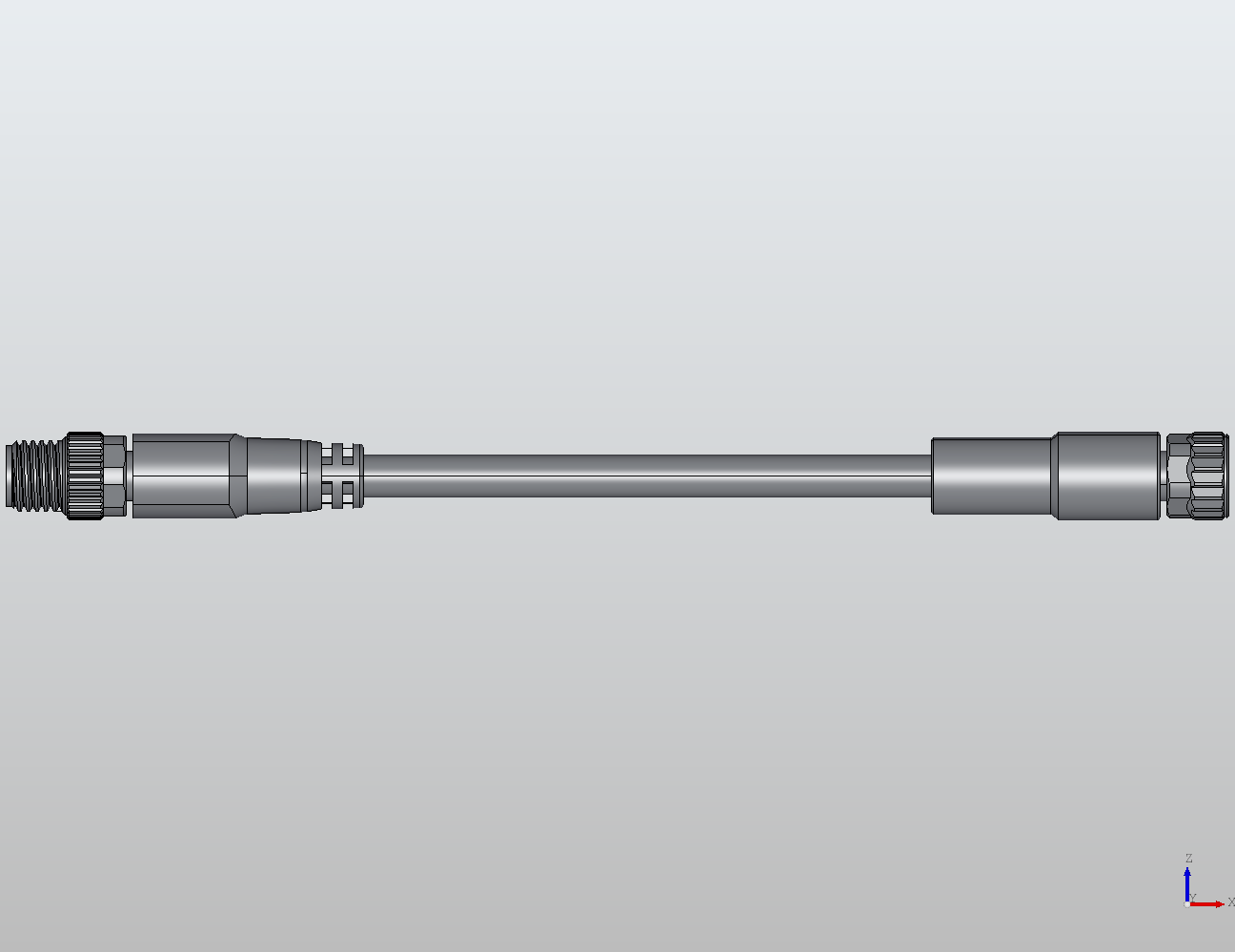

M8 Round Plug Connector M8-M8 Connection Cable Straight/Straight Male/Female 988104 - 500mm
988104-293-500
Price
--Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M8 B-coded 8-pole male/female connector cable with straight/straight orientation (SKU 988104) provides an M8-to-M8 inline connection for compact automation devices. The unshielded construction is suited to standard installations where dedicated EMI/RFI shielding is not required, and the design has no LED indicator, so status is verified at the controller or device level.
Current 4 A
Voltage 50 V AC / 60 V DC
Protection IP65
Standard IEC 61076-2-104
Shielding Yes
LED No
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Color | black |
| Poles | 8 |
| Shielded | No |
| Coding | b |
| Jacket | pvc |
| C Track | no |
| Csa (mm2) | 8x0-25-mm² |
| Current (A) | 4A |
| Length (mm) | 500mm |
| Voltage (V) | 50V AC 60V DCV |
| Protection | ip65 |
| Temp Range | 25-to-85 |
