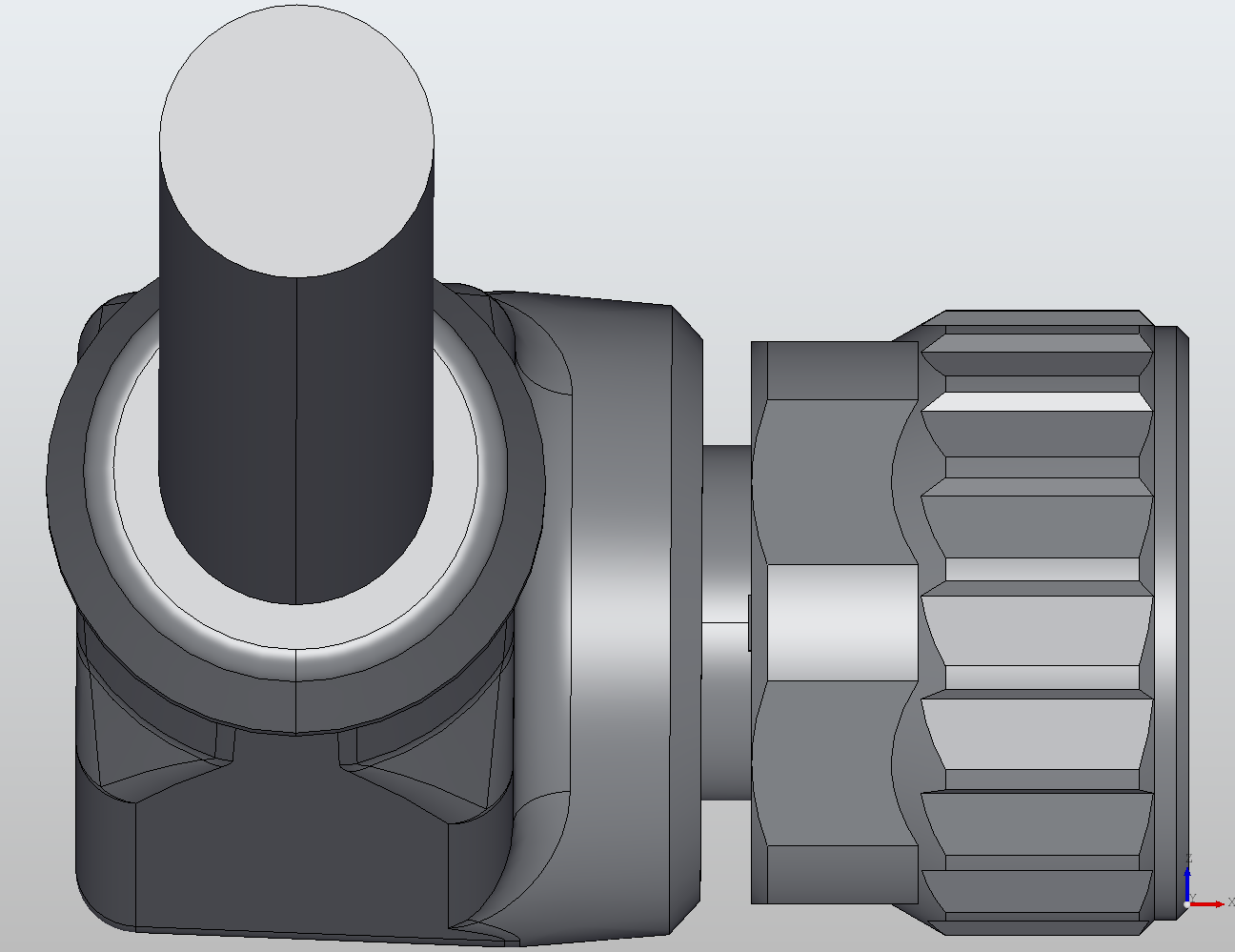

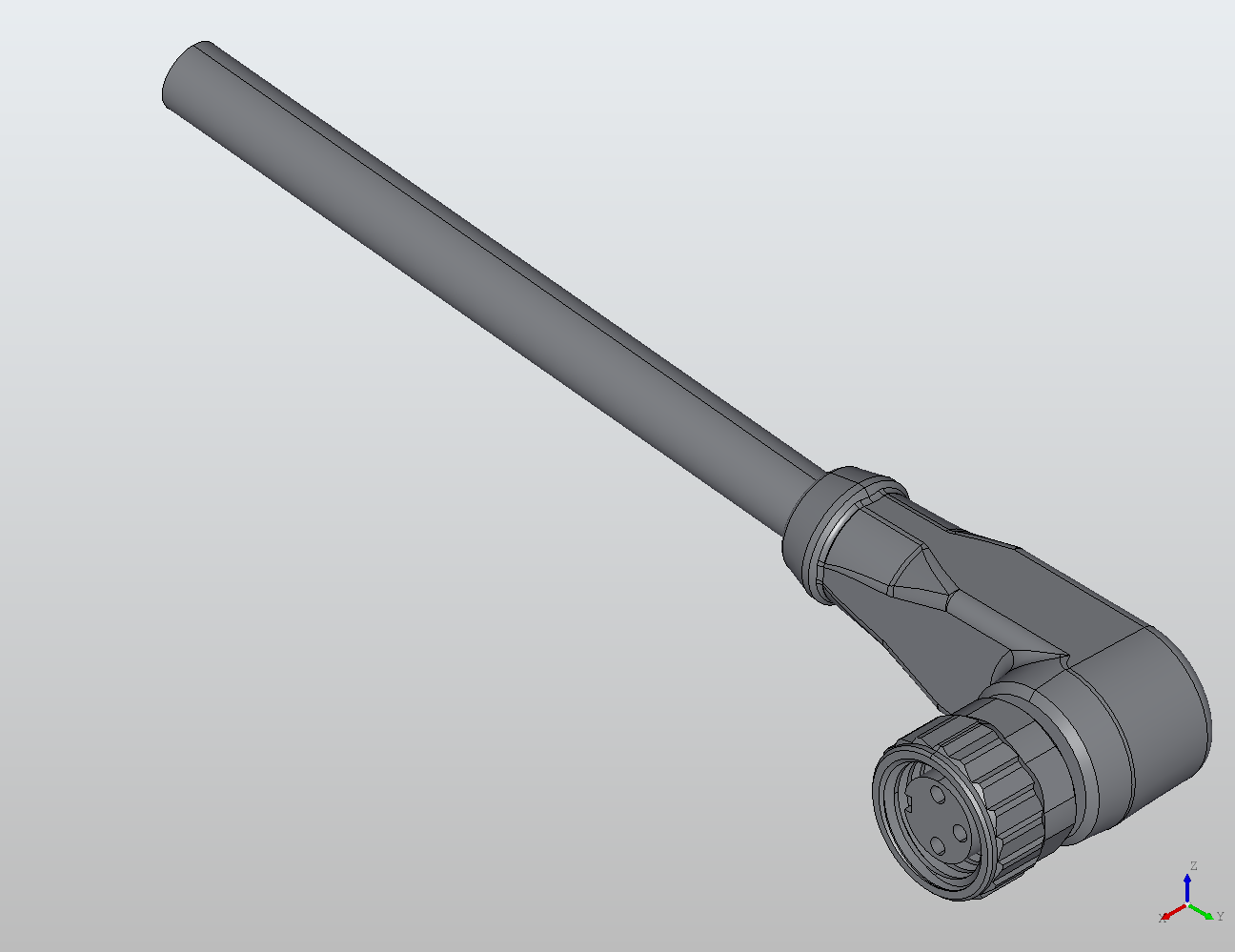

M8 Round Plug Connector Open Ended Wire 90° Female 908081 - Grey PVC 1000mm
908081-210-1000
Price
--Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M8 A-coded female connector, 3-pole, with a 90° angled body and open-ended wire configuration (SKU 908081) is designed for compact routing in space-constrained machine layouts. The non-shielded construction is appropriate for standard sensor/actuator wiring where high EMI/RFI immunity is not a primary requirement, and the design is supplied without LED indication for applications using centralized diagnostics.
Current 8 A
Voltage 50 V AC / 60 V DC
Protection IP65
Standard IEC 61076-2-104
Shielding Yes
Lengths 150 - 1000 mm
Specifications
| Specification | Value |
|---|---|
| Color | grey |
| Poles | 3 |
| Shielded | No |
| Coding | a |
| Jacket | pvc |
| C Track | no |
| Csa (mm2) | 3x0-25-mm² |
| Current (A) | 4A |
| Length (mm) | 1000mm |
| Voltage (V) | 50V AC 60V DCV |
| Protection | ip65 |
| Temp Range | 25-to-85 |
