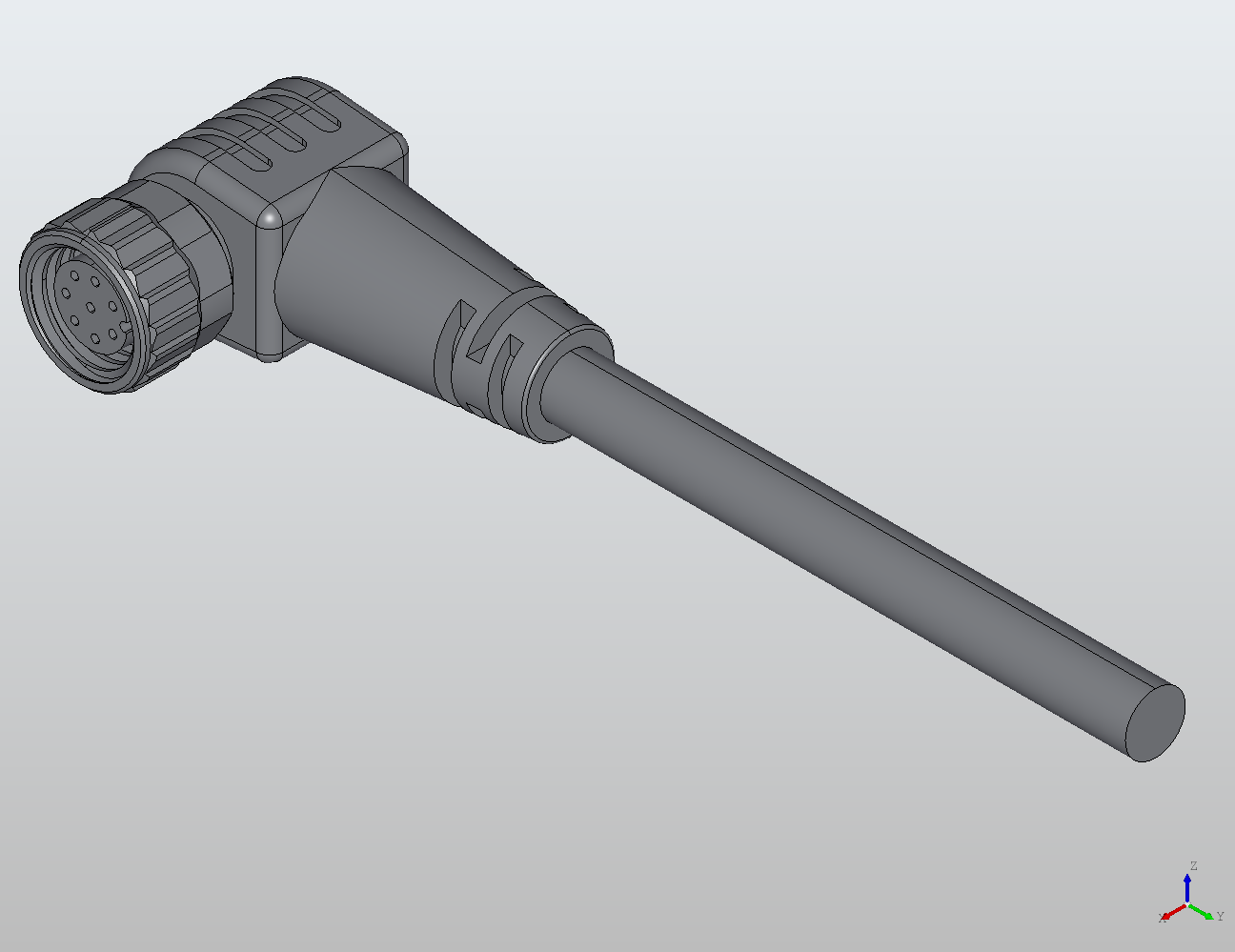

M8 Round Plug Connector Open Ended Wire 90° Female 908482
908482
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M8 B-coded female connector, 90° angled, with 8 poles and open-ended wire leads, is designed for compact routing in tight machine spaces and panel interfaces. Unshielded construction suits standard control wiring where dedicated EMI/RFI screening is not required, and the version is supplied without LED indication for straightforward integration into existing diagnostics schemes.
Poles 8
Coding B
Gender Female
Direction 90°
Protection IP65
Current 4
Voltage 50 V AC 60 V DC
Shielding No
LED No
Specifications
| Specification | Value |
|---|---|
| Poles | 8 |
| Coding | B |
| Gender | Female |
| Direction | 90° |
| Protection | IP65 |
| Current | 4 |
| Voltage | 50 V AC 60 V DC |
| Shielding | No |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
Technical Resources
No verified file is available online for this product. Use the RFQ form for technical-document requests.
