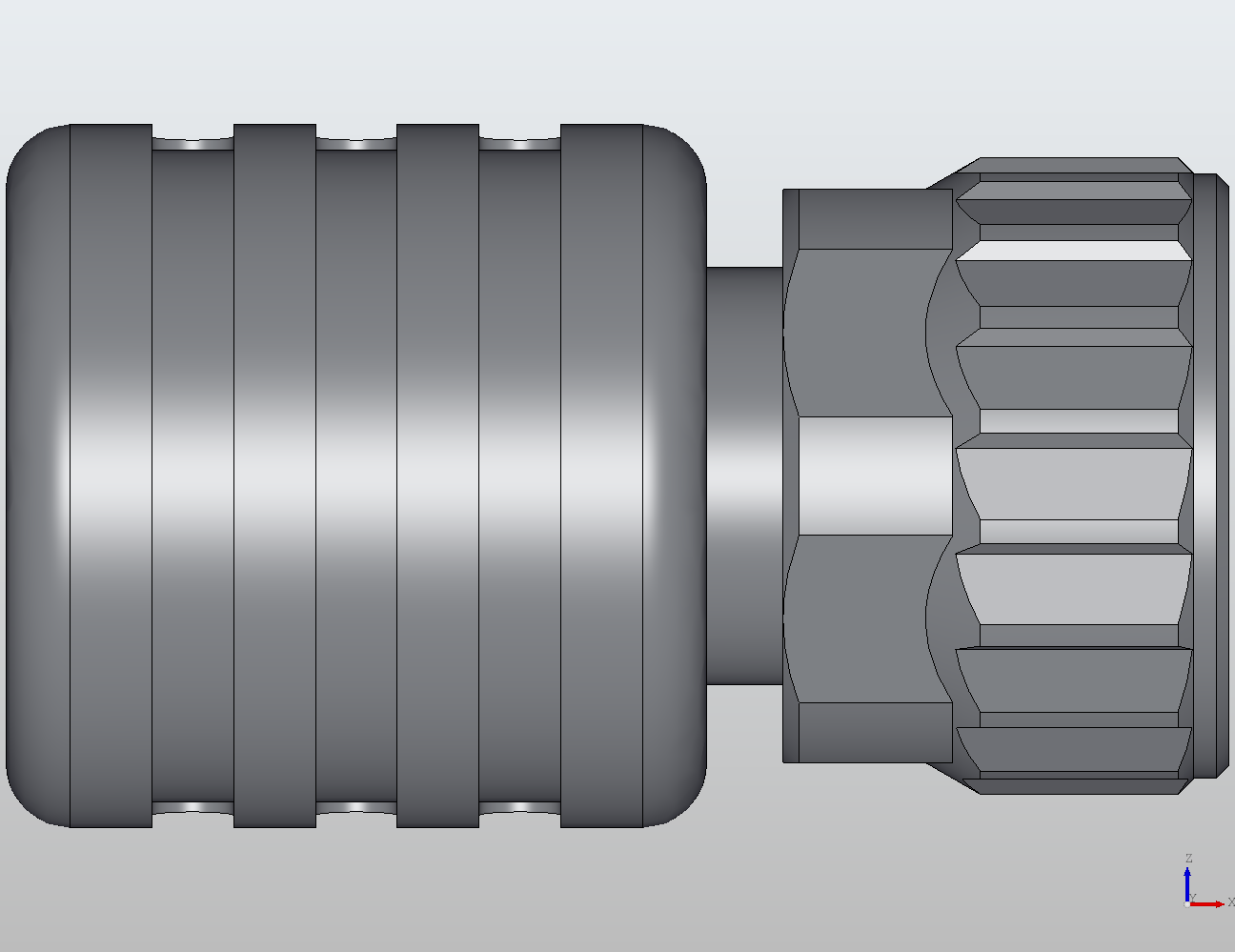

M8 Round Plug Connector Open Ended Wire 90° Female 908482 - 150mm
908482-293-150
Price
--Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.

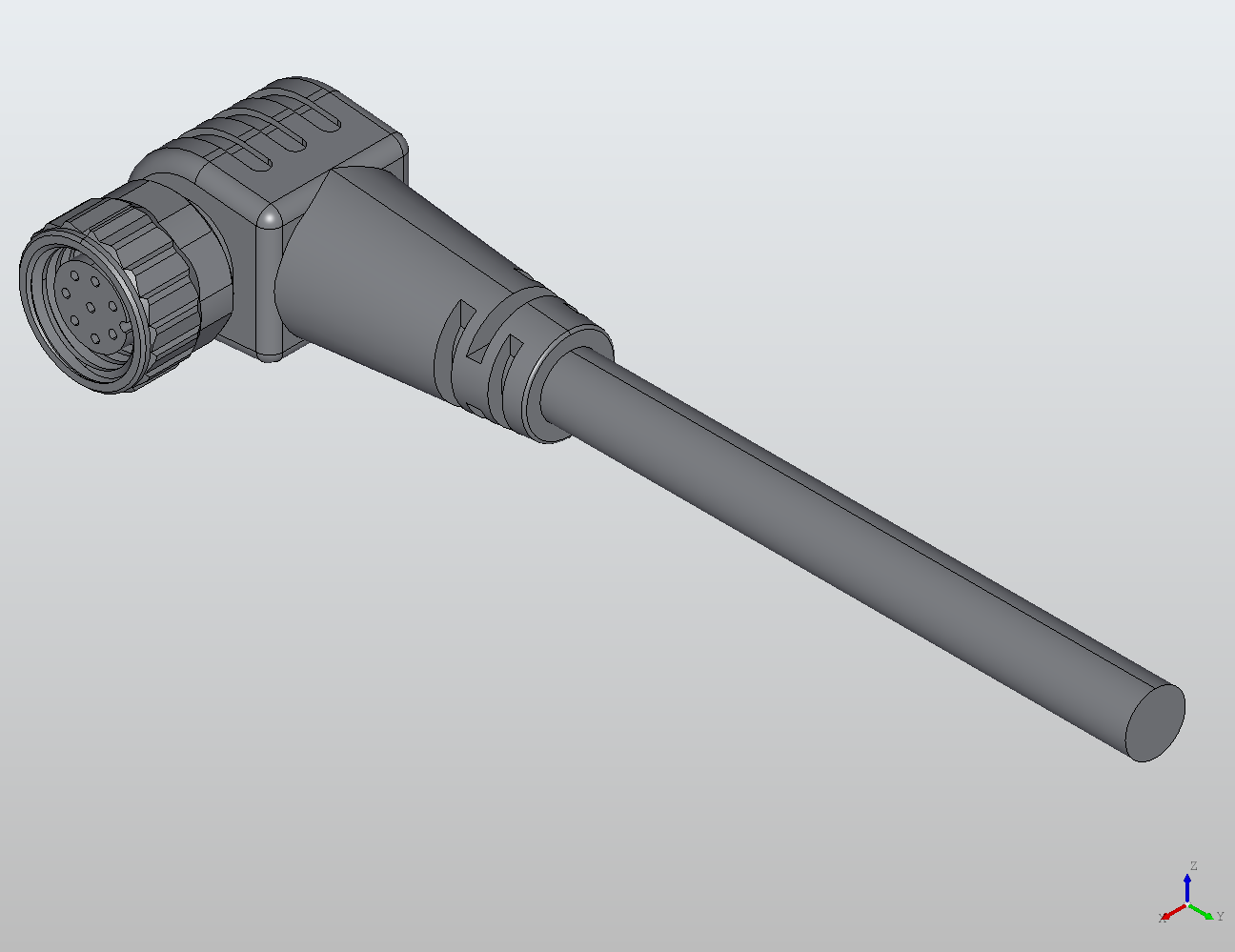

M8 B-coded female connector, 90° angled, with 8 poles and open-ended wire leads, is designed for compact routing in tight machine spaces and panel interfaces. Unshielded construction suits standard control wiring where dedicated EMI/RFI screening is not required, and the version is supplied without LED indication for straightforward integration into existing diagnostics schemes.
Poles 8
Coding B
Protection IP65
Current 4 A
Voltage 50 V AC 60 V DC
Shielding No
Specifications
| Specification | Value |
|---|---|
| Poles | 8 |
| Coding | B |
| Protection | IP65 |
| Current | 4 A |
| Voltage | 50 V AC 60 V DC |
| Shielding | No |
| C Track | no |
| Color | black |
| Csa (mm2) | 8x0-25- mm² |
| Jacket | pvc |
| Length (mm) | 150 mm |
| Temp Range | 25-to-85 |
Other Configurations
M8 Round Plug Connector Open Ended Wire 90° Female 908482 - 1000mm (908482-293-1000)
M8 Round Plug Connector Open Ended Wire 90° Female 908482 - 300mm (908482-293-300)
M8 Round Plug Connector Open Ended Wire 90° Female 908482 - 500mm (908482-293-500)
M8 Round Plug Connector Open Ended Wire 90° Female 908482 - 750mm (908482-293-750)
Technical Resources
No verified file is available online for this product. Use the RFQ form for technical-document requests.
