M8 Round Plug Connector Open Ended Wire 90° Male 908382
908382
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.

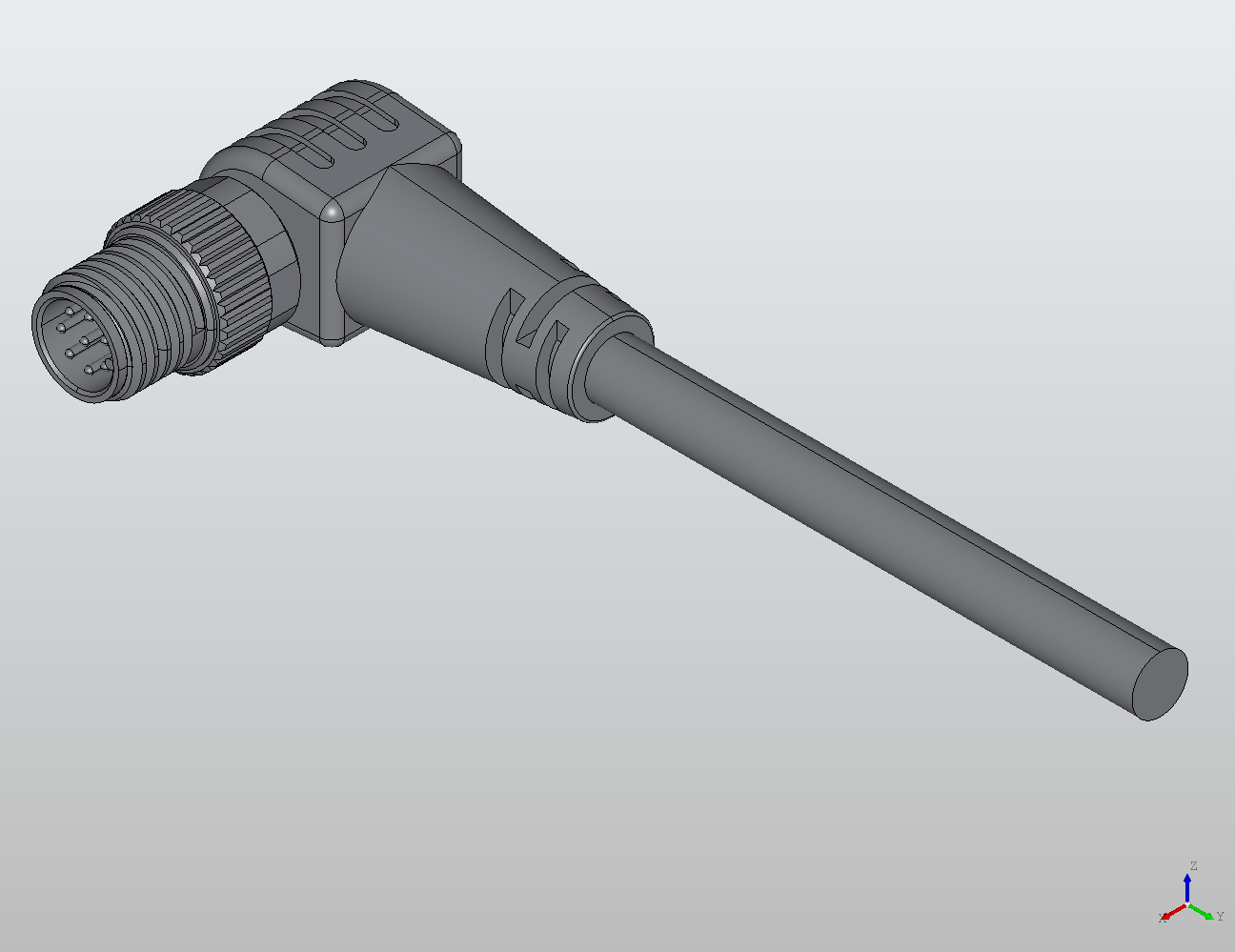

M8 B-coded male connector in a 90° orientation with 8 poles is designed for compact machine wiring where angled cable routing is required. Open-ended wire configuration simplifies integration into control cabinets, junction boxes, and custom harnesses when field termination flexibility is needed.
Poles 8
Coding B
Gender Male
Direction 90°
Protection IP65
Current 4
Voltage 50 V AC 60 V DC
Shielding No
LED No
Specifications
| Specification | Value |
|---|---|
| Poles | 8 |
| Coding | B |
| Gender | Male |
| Direction | 90° |
| Protection | IP65 |
| Current | 4 |
| Voltage | 50 V AC 60 V DC |
| Shielding | No |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
Technical Resources
No verified file is available online for this product. Use the RFQ form for technical-document requests.
