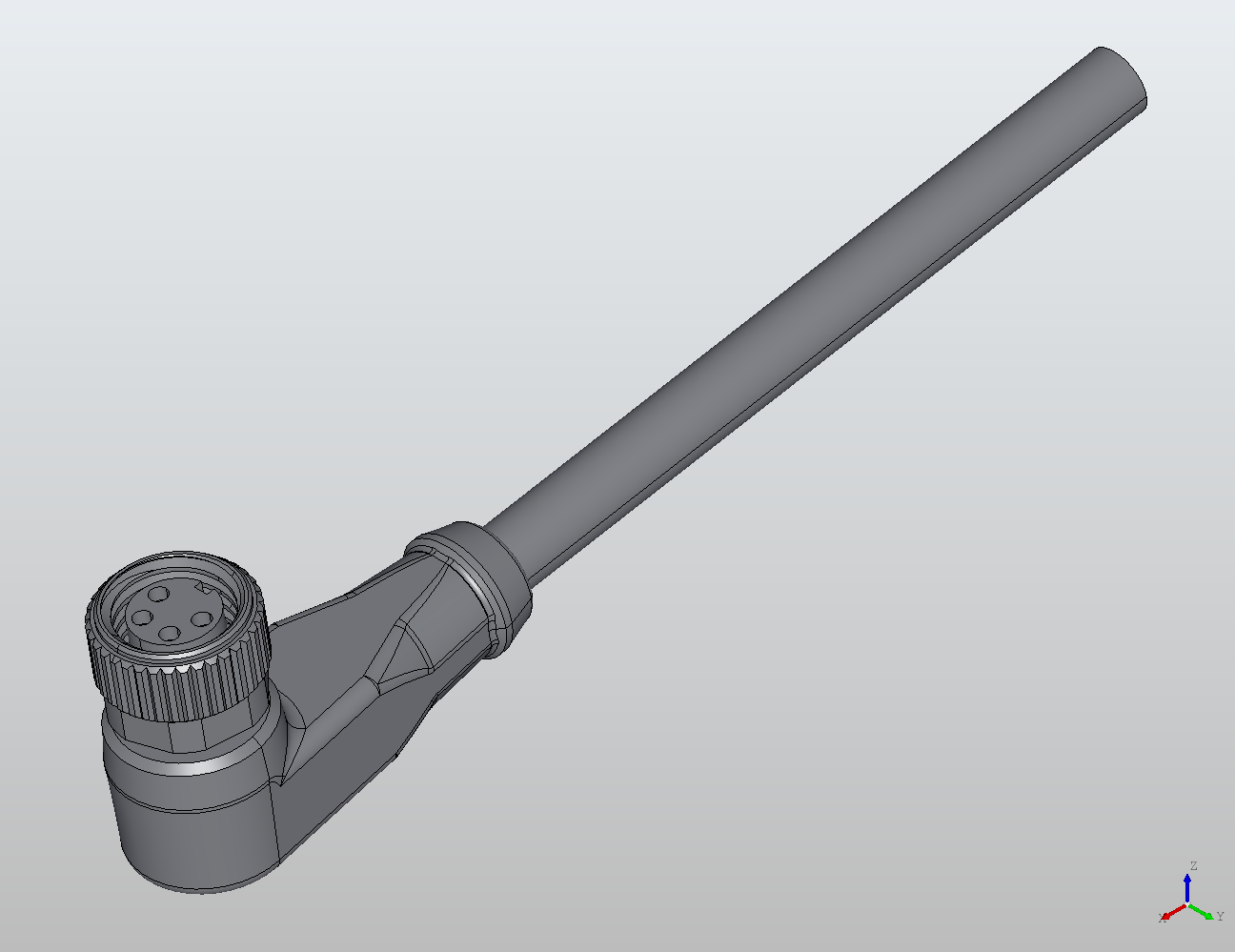

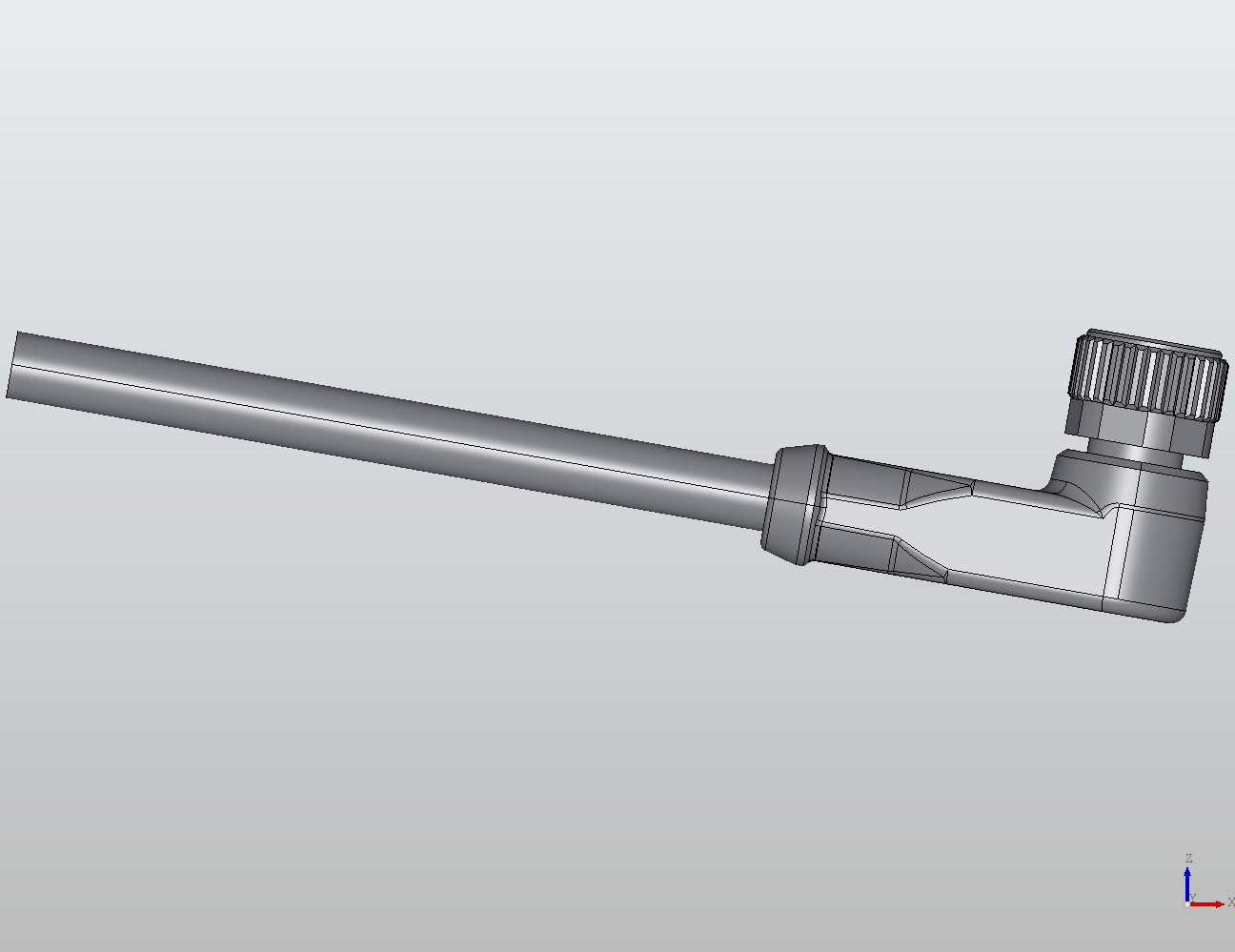

M8 Round Plug Connector Open Ended Wire (Shielded) 90° Female 908801
908801
Price
--Select Configuration
Select a variant to see stock and add this item to your cart.
Lead Time available on request
Request Quote
For bulk quantities, custom cable lengths, or project pricing.
M8 A-coded 4-pole female connector with a 90° body and open-ended wire configuration, SKU 908801, is designed for compact sensor and actuator connections where angled cable routing reduces bending stress. Shielded construction improves EMI/RFI immunity, helping maintain signal integrity around drives, motors, and switching equipment.
Poles 4
Coding A
Gender Female
Direction 90°
Protection IP65
Current 4
Voltage 50 V AC 60 V DC
Shielding Yes
LED No
Specifications
| Specification | Value |
|---|---|
| Poles | 4 |
| Coding | A |
| Gender | Female |
| Direction | 90° |
| Protection | IP65 |
| Current | 4 |
| Voltage | 50 V AC 60 V DC |
| Shielding | Yes |
| LED | No |
| Lengths | 150, 300, 500, 750, 1000 |
Technical Resources
No verified file is available online for this product. Use the RFQ form for technical-document requests.
